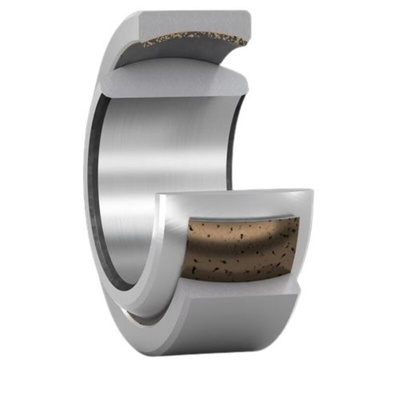

SKF GE 30 C 30mm Bore Spherical Bearing, 47mm O.D

SKF Spherical Bearing, Plain Bearing Type, 30mm Bore, 47mm OD, 166kN Static Load Rating - GE 30 C

Keep your industrial equipment running smoothly with this spherical bearing from SKF. It supports radial and thrust loads to give you flexible movement in your machinery. Thanks to a substantial static load rating of 166kN, this unit can endure heavy, constant-direction loads without warping or failing. This makes it suitable for applications with demanding load requirements. There are no rolling elements between the rings, which means it's not affected by dust and external contaminants so you can count on glitch-free performance.

Features & Benefits

• Compact outer ring width of 18mm means it fits into applications with space limitations
• Functions efficiently at high temperatures, so it's suitable for harsh settings
• Inner and outer rings are made of sturdy steel that resists corrosion and impact
• Weighs just 160g, so it's easy to handle during installation

Applications

• Mining and quarrying equipment
• Power transmission systems
• Industrial pumps

How often does this bearing need maintenance?

The bearing's contact surface is made from PTFE sintered bronze, which has self-lubricating properties. This allows the device to work at its best for a long time without needing any maintenance.

Datasheet - GE 30 C
