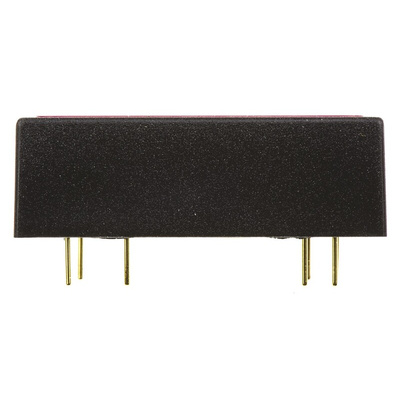

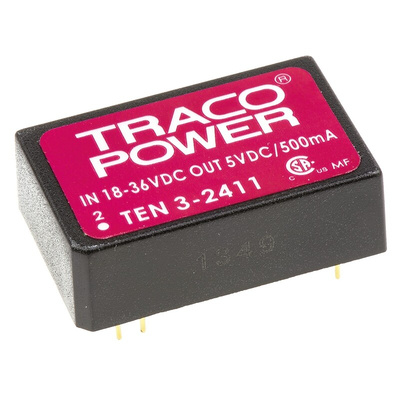

TEN 3-2411, TRACOPOWER TEN 3 DC-DC Converter, 5V dc/ 500mA Output, 18 → 36 V dc Input, 2.5W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, DIP-24 Package, 79% Efficiency - TEN 3 Series - TEN 3-2411

Need an industrial PSU with high efficiency and solid safety specs? This DC-DC converter from Traco Power is just the job. It takes a voltage ranging anywhere between 18 and 36V DC and steps it down to a stable 5V DC you can use to power any battery-run device. Thanks to its non-conductive plastic casing, functional insulation and construction from flame-retardant materials, you can trust it's a safe bet for use in harsh environments. The unit's 79% efficient, meaning it produces little waste energy as heat. This helps it handle a broad operating temperature range from -40°C to +85°C without needing a fan or heatsink.

Features & Benefits

• Continuous short-circuit protection with automatic reset protects you and your equipment from harmful current faults
• Shields against hazardous voltage surges and spikes thanks to the unit's 1.5kV isolation

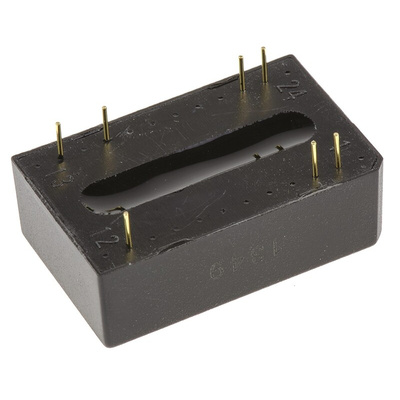

• Industry-standard pinout on DIP-24 unit means it's easy to install on your PCB

Applications

• Industrial control systems
• Data centres
• Radar technology

What's the benefit of this converter's low ripple and noise rating?

This DC-DC converter's maximum ripple and noise of 60mVpk-pk means it produces little electrical noise when operating. As a result, you can expect minimal interference caused by EMI for consistent electrical behaviour.

Approvals

UL Recognised; EN60950; UL1950
