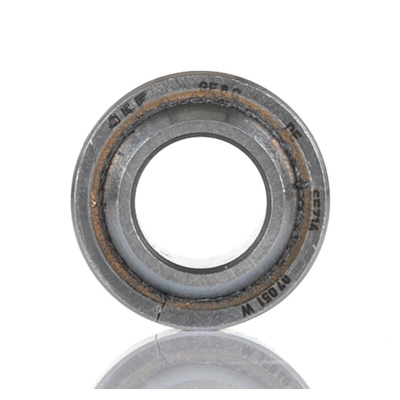

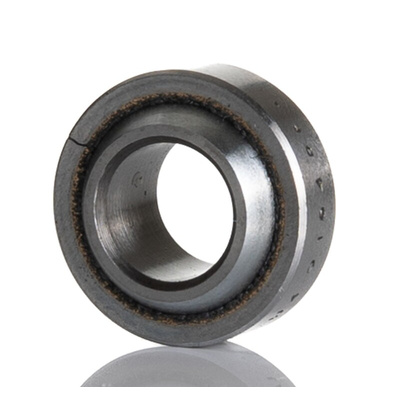

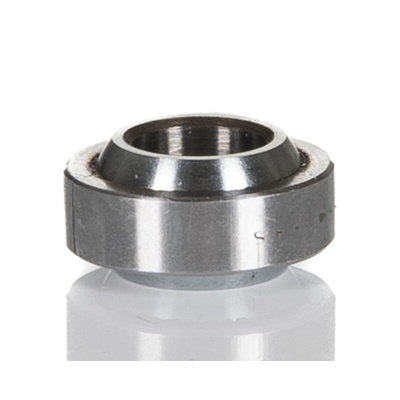

SKF GE 8 C 8mm Bore Spherical Bearing, 16mm O.D

SKF Spherical Bearing, 13mm Raceway Diameter, 15° Angle of Tilt, 8mm Bore Diameter, 16mm OD - GE 8 C

Do you need a bearing that can handle shaft deflection? Choose this steel spherical type from SKF. The component's inner ring tilts to allow shafts inserted into its 8mm-wide bore to move by 15°. Its PTFE sintered bronze contact surface is resistant to wear, so it can stand up to many rotations for long service. With its broad operating temperature range between -50°C and +150°C, this robust unit is ideal for applications in harsh work areas.

Features & Benefits

• Greaseless, maintenance-free bearing type to save you the hassle of applying more lubricant
• Steel rings are durable to ensure a long service life
• Light weight of 8g to avoid putting strain on your shaft
• Supports radial and combined radial and axial loads, so it's a versatile component

Applications

• Oil field exploration
• Power generation
• Wind turbines
• Construction industry
• Aggregate processing

What's the load rating of this unit?

This spherical bearing can withstand loads of up to 5.85kN when moving and 14.6kN when stationary, so it's suitable for heavy-duty applications.

Datasheet - GE 8 C

Catalogue - Bearings and Rod Ends
