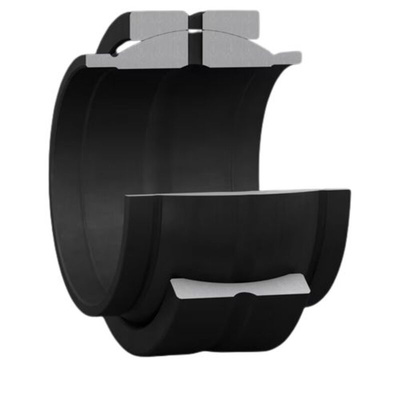

SKF GEG 16 ES 16mm Bore Spherical Bearing, 28mm O.D

SKF Spherical Bearing, 28mm OD, 16mm Bore, Steel Construction, 88kN Static Load Rating - GEG 16 ES

Minimise friction in your equipment's moving parts with this spherical bearing from SKF. It's a reliable choice for applications that generate both axial and combined loads. As the component tolerates misalignment between the shaft and housing, it gives you flexibility in your setup. Inner and outer rings made from sturdy steel are resistant to corrosion and impact, so you can be sure of a long lifespan even in demanding settings. With a bore size of 16mm and an outside diameter of 28mm, this bearing is ideal for use with small shafts.

Features & Benefits

• Contains no rolling elements, so runs quietly
• Dynamic load rating of 17.6kN and static load rating of 88kN mean it suits light-duty applications
• Steel contact surface resists wear and tear, ensuring dependable performance
• Extended inner ring means you don't need to install additional spacers

Applications

• Conveyor systems
• Material handling equipment
• Cranes and hoists

How do I lubricate this component?

You can grease it via the lubrication holes on its body and the annular grooves on both rings. Regular lubrication keeps it operating smoothly and extends its lifespan.

Datasheet - GEG 16 ES

Catalogue - Spherical Plain Bearings and Rod Ends
