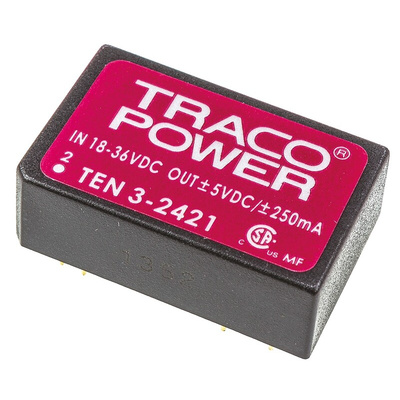

TEN 3-2421, TRACOPOWER TEN 3 DC-DC Converter, ±5V dc/ ±250mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco 1.98 to 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TEN 3 Series

The Traco Power TEN 3 series is a range of isolated, 3 Watt, DC-DC converters in a DIP-24 package. With their high efficiency these regulated converters allows an operating temperature range of –40°C to +85°C. The full SMD design of these DC-DC converters guarantees high reliability. The TEN 3 series is ideal for a wide range of applications in industrial and communication systems.

Wide 2:1 input range
High efficiency up to 84%
Full SMD-design
Short circuit protection
Extended operating temperature range –40°C to 85°C
I/O isolation 1500 VDC
Input filter to meet EN 55022, Class A and FCC, level A without external components
24-pin DIP with industry standard pinout
High reliability, MTBF >1.1 Mio. h

Standards

cUL/UL 60950-1, IEC/EN 60950-1

Approvals

cUL/UL , IEC/EN , CSA File No. 226037

Traco Power TEN 3 Series DC-DC Converter, 79% Efficiency, Through Hole Mount - TEN 3-2421

This Traco Power DC-DC converter is an isolated converter with a 24V input and a power rating of 3W. Designed for industrial and communication systems, this converter offers high efficiency and a wide operating temperature range. With ±5V output voltage, it ensures reliable power supply for various applications.

Features & Benefits

• Efficient power conversion with 79% efficiency
• Isolated design for enhanced safety
• ±5V output voltage suitable for industrial applications
• Through hole mounting type for easy installation
• DIP 24 Package for compact design and industry standard pinout

Applications

• Automation systems requiring precise power supply
• Electronics equipment demanding stable voltage output
• Electrical machinery requiring reliable power conversion
• Mechanical devices with specific voltage requirements

Can it operate in extreme temperature conditions?

This converter can operate in a temperature range from -40°C to +85°C, making it suitable for harsh environments.

Will it ensure stable power supply for sensitive electronic devices?

Yes, the isolated design and ±5V output voltage ensure stable power delivery, ideal for sensitive electronics.

Is it suitable for industrial-grade applications?

Yes, the Traco Power DC-DC converter is designed for industrial use, with a power rating of 3W and ±5V output voltage.

Can it be used in automation systems with varying input voltages?

With a wide input voltage range from 18V to 36V, this converter is perfect for automation systems requiring flexible power options.

Does it provide short circuit protection?

Yes, this converter offers short circuit protection for added safety and reliability.

Approvals

UL Recognised; EN60950; UL1950
