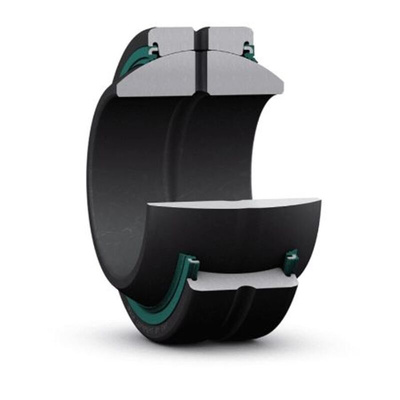

SKF GEH 10 C 10mm Bore Spherical Bearing, 22mm O.D

SKF Spherical Bearing, 10mm Bore, 22mm OD, Cylindrical Bore Type - GEH 10 C

Get radial and axial loads rolling through your system with this spherical bearing from SKF. It's an ideal choice for automated systems or assembly lines where weighty products need to be shifted in a single direction. The unit handles misalignment without a slip in performance, so it's a reliable option for high-vibration settings. Thanks to an outer diameter of 22mm, it stays stable when balancing greater tilt angles, so it's a sure-footed choice. A 10mm bore diameter makes this a suitable option for small shafts.

Features & Benefits

• Designed to be maintenance-free, so you can install it and leave it to do the job
• Light 20g weight minimises strain on your system
• High static load rating of 28,500N and 11,400N dynamic load rating to support demanding applications
• Super-strong steel housing resists impacts and wear to deliver a long service life

Applications

• Manufacturing facilities
• Packaging equipment
• Automotive industry

Does this spherical bearing need lubrication?

This spherical bearing has a PTFE-sintered bronze sliding surface, which means it's self-lubricating and resists friction without the need for lubrication.

Datasheet - GEH 10 C

Brochure - SKF Explorer Steel/SteelPlain Bearings
