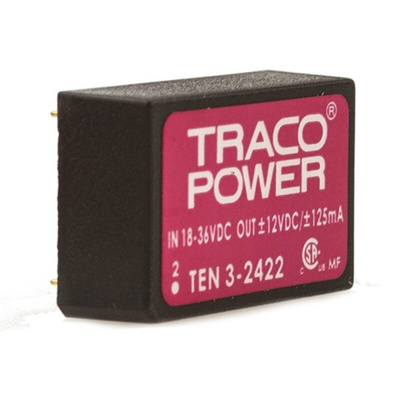

TEN 3-2422, TRACOPOWER TEN 3 DC-DC Converter, ±12V dc/ ±125mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, Input Filtering, 82% Efficiency - TEN 3 Series - TEN 3-2422

When you need a versatile power and conversion solution for demanding electrical setups, try this DC-DC converter from Traco Power. It takes an input voltage from a wide 18 to 36V DC range and steps it down to a carefully managed output of ±12V DC to supply battery-powered devices. As this is a dual-output model, you can use it to run up to two bits of connected kit at one time. Thanks to this converter's impressive efficiency of 82%, you can trust it works safely to full load in ambient temperatures ranging from -40°C to +85°C.

Features & Benefits

• EMI filtering and maximum 60mVp-p ripple and noise make it a safe bet in sensitive environments
• Mean time between failures of over 1.1 million hours, so you know it's a long-lasting choice
• Flame-retardant potting helps minimise the spread of flames in case of fire

Applications

• Server rooms
• Industrial automation
• Cleanrooms

What electrical protections does this product offer?

This converter comes with overvoltage and continuous short-circuit protections to shield against common voltage and current errors. Thanks to the unit's isolation to 1.5kV DC you can trust it safeguards against electrical surges too.

Approvals

UL Recognised; EN60950; UL1950
