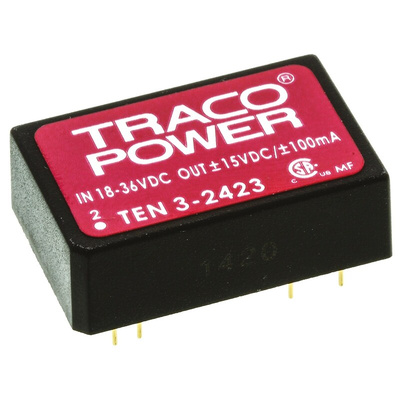

TEN 3-2423, TRACOPOWER TEN 3 DC-DC Converter, ±15V dc/ ±100mA Output, 18 → 36 V dc Input, 3W, Through Hole, +85°C Max Temp, Преобразователь

Traco Power DC-DC Converter, DIP-24 Package, 1% Load Voltage Regulation - TEN 3 Series - TEN 3-2423

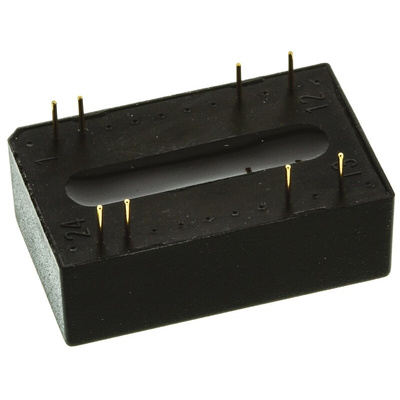

When a consistent source of power's key, step down your electrical supply with this regulated DC-DC converter from Traco Power. Its 2:1 range means it accepts any voltage between 18 and 36V DC and outputs ±15V DC which makes charging your battery-powered devices a piece of cake. Tight line regulation up to 0.5% and load regulation up to 1% takes the hassle out of maintaining your required voltages, too. You can count on a long service life from this reliable unit thanks to a mean time between failures of 1,100,000hrs. The compact DIP-24 package measures 32 (L) x 10.2mm (W) and has an industry-standard pinout that helps speed up installation on crowded PCBs.

Features & Benefits

• Dual outputs let you charge two devices at once
• Indefinite short-circuit protection with automatic recovery tackles current faults while reducing unnecessary downtime
• Safe handling thanks to non-conductive, non-flammable FR4 plastic housing
• Inputs and outputs isolated to 1.5kV to protect against electrical surges

Applications

• Communications systems
• Industrial automation
• Automotive applications

How efficient is this converter?

The device has an 82% efficiency rating. This means it wastes very little energy as heat, so doesn't need a heatsink and can count on free-air convection to run cool.

Approvals

UL Recognised; EN60950; UL1950
