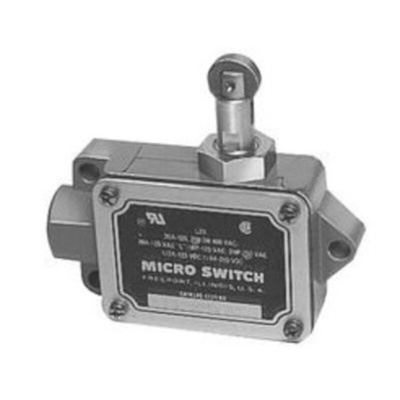

BAF1-2RQ9-LH, Honeywell Roller Plunger Limit Switch, 1NC/1NO, SPDT, Die Cast Aluminium Housing, 480V ac ac Max, 20A Max

The Honeywell MICRO SWITCH BAF/DTF Series High Capacity Enclosed Switches, Top Roller Plunger, 1NC/1NO SPDT Snap Action, Actuator Position - Left. MICRO SWITCH BAF/DTF high capacity enclosed switches offer elastomer boot on sealed actuator versions that protects the actuating mechanism and the internal basic switch from contaminants. There is a seal gasket between the cover plate and the enclosures on all versions. The cover plate is removed for ease of wiring and switch replacement without demounting the switch. The actuator position is designated “right” or “left,” when looking at the nameplate.

Up to 20 ampere capacity
Cast aluminium housing with three-hole mounting
Right or left-handed (sealed or unsealed) actuators
Cover seal, captive cover screws
Momentary or maintained contact
UL recognized, file #E12252
CSA certified, file #LR41372
Sealed to NEMA 1, 3, 4 and 13 requirements
Grounding screw
