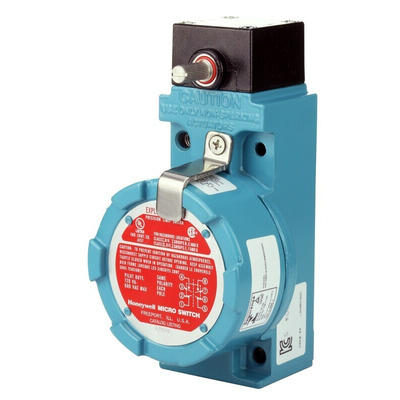

BXA4L, Honeywell Limit Switch, 2NO/2NC, IP67, DPDT, Aluminium Housing, 600V ac ac Max, 10A Max

The Honeywell MICRO SWITCH BX Series Hazardous Location Limit Switches (Non Plug-in),side rotary (no level included), 2NC 2NO DPDT snap action, 0.75 in - 14NPT conduit. The MICRO SWITCH BX enclosure is sealed for protection against corrosion, water, dust and oil as defined in NEMA 1, 3, 4, 6, and 13 and IP67 as defined in IEC 529. These enclosures also meet the European Hazardous Locations Designation: II 2 GD, Ex d IIC T6 Gb
1 Ex d IIC T6 Gb
II 2 D Ex tb IIIC t85C Db.

UL, CSA, ATEX (CE), IEC Ex, INMETRO, KOSHA, NEPSI, EAC (Gost-R) approvals
Sealing - applicable portions of IP67 and NEMA 1, 3, 4, 6, and 13
Diverse conduit selection for wide range of applications
Compatible with LSX
Tracking interchangeability with MICRO SWITCH ML-E1 and HDLS
Variety of heads and non-sparking actuators
10 A continuous carry electrical rating

Datasheet - BXA4L
