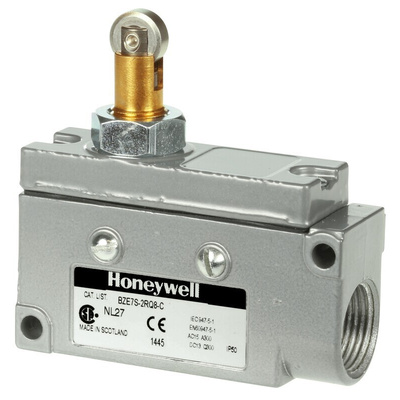

BZE7-2RQN8-C, Honeywell Roller Plunger Limit Switch, 1NC/1NO, IP65, SPDT, Die Cast Aluminium Housing, 480V ac ac Max, 15A Max

The Honeywell MICRO SWITCH E7/V7 Series Medium-Duty Limit Switches, Sealed Top Roller Plunger, 1NC 1NO SPDT Snap Action, 20 mm [0.79 in] conduit. MICRO SWITCH E7/V7 Series medium duty limit switches are designed for a wide variety of indoor and outdoor applications. The electrostatic applied epoxy coating to the aluminium housings enhances the durability of the product in most applications. The E7/V7 family of switches incorporates the Honeywell MICRO SWITCH BZ switch element. The sealed (plungers with boots) E7 Series are preferred for applications where there could be exposure to liquid and/or particulate environments. The unsealed V7 Series are ideal for applications where there will not be exposure to liquid or dust environments.

Side or flange mount
Reversible actuator facility
Choice of conduit thread
Rugged aluminium housing
Temperature range -30 °C to 71 °C [ -22 °F to 160 °F]
Wide choice of actuators
Gang mount capability

Datasheet - BZE7-2RQN8-C
