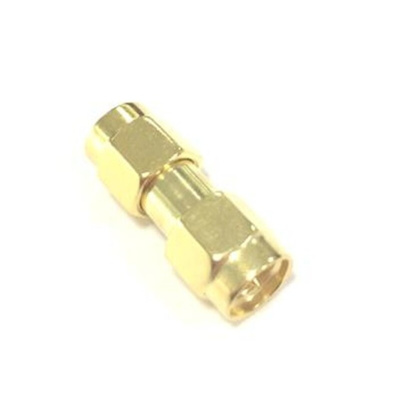

RS PRO Straight 50Ω RF Adapter SMA Plug to SMA Plug 6GHz

RS PRO SMA Coaxial Adapter

The RS PRO range of coaxial adapters continues to improve, and we are proud to introduce the latest high-quality coaxial adapters. These SMA coaxial type adapters have been designed to provide an effective method of connecting coaxial cable assemblies through a panel mounting connection. They are made from good quality materials and to industry-standard.

When creating custom cable assemblies these adapters can be extremely useful for extending and connecting coaxial cable. These RF connectors are most commonly used for connecting radio and television broadcast equipment and offer excellent signal transfer and long service.

Why are good quality connectors important?

An RF signal is only as good as the cable, wire, and connectors it passes through. Using quality components like these coaxial adapters, coupled with the right high-quality coaxial cable and connector will ensure you are getting the best possible signal for your application.

Features and benefits

• Gold plated body


• SMA plug to SMA plug RF adapter


• Ideal for semi-rigid and flexible cables


• Provides high frequency performance at high power ratings in small diameters


• Operating frequency of 6GHz or 18GHz


• Designed for use in design and development work and where large quantity usage requires repeatability in performance

Specification

• Type of connector: SMA plug into SMA plug


• Adapter Type A: SMA


• Adapter Type B: SMA


• Gender A: Male


• Gender B: Male


• Impedance: 50 Ω

RS PRO SMA Coaxial Adapter Variants

• SMA Coaxial Adapter, 6 GHz = RS stock no: 217-7778


• SMA Coaxial Adapter, 18 GHz = RS stock no: 546-3282

Applications

SMA coaxial adapters are used in a variety of RF (radio frequency) signal applications as well in medical and test equipment. Other applications include;

• Test and measurement


• Communication systems


• GPS equipment


• Antennas

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
