RS PRO, jack Edge Mount SMA Connector, 50Ω, Solder Termination, Straight Body

RS PRO Edge Mount SMA Connector - 50 Ω

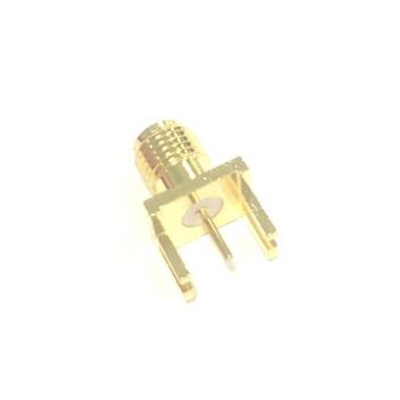

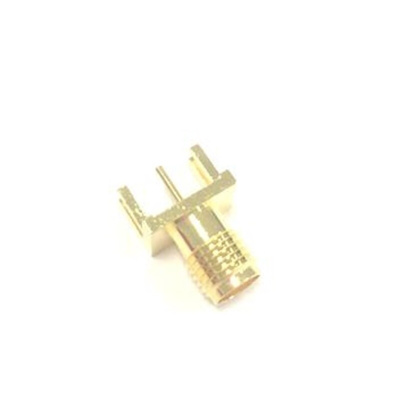

From RS PRO a new addition to the SMA connector range. This edge mount SMA connector is designed for efficient mounting to printed circuit boards. Offers an impedance of 50 Ω, gold plated brass body, Teflon insulator, and gold- plated contact. This female SMA connector is a sub-miniature radio frequency (RF) connector designed to interface with coaxial cable assemblies SMA plugs.

Where would you find them?

This SMA edge mount connector is one of many RF connector types found in equipment such as transmitters, used in conjunction with coaxial cable to carry high-frequency electrical signals with low losses. Common applications are printed circuit boards where they are edge mounted and secured by solder for a sturdy connection.

How to Identify Male and Female SMA

Male gender SMA connectors have outward pins and threaded connection inside, whereas a female gender SMA have inward pins and threaded connection outside.

Features and Benefits

• Female SMA coaxial connector


• Fitted with gold-plated body and centre contact


• Teflon insulator


• Sub-miniature size


• Edge mount


• Impedance of 50 Ω


• Normal polarity


• Operating frequency up to 18 GHz


• Operating temperature range of -65°C to +165°C


• Termination: Solder

Things to consider!

It’s good practice to have the appropriate tools to carry out a new install or replacement coaxial. Consider these RS PRO products for soldering/de-soldering applications.

• RS PRO SAC305 Lead-Free Solder; RS stock no: 756-8884


• RS PRO 200ml Solder Flux Aerosol Can; RS stock no: 494-764

Applications

• Telephone systems


• Microwave systems


• Wi-Fi Antenna systems
