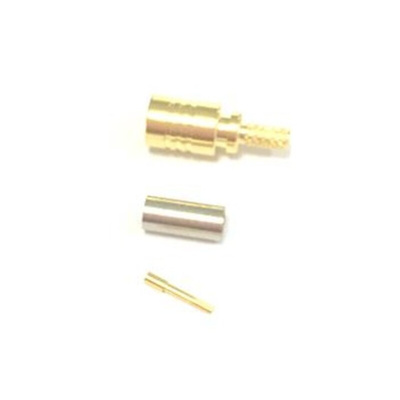

RS PRO, jack Cable Mount SMB Connector, 50Ω, Crimp Termination, Straight Body

RS PRO 50Ω SMB Connector - Straight Cable Mount

From the trusted brand RS PRO, a straight cable mount SMB connector. This sub-miniature RF connector is used to form a union between coaxial cables. This device is made from high-quality materials such as gold body and gold contact plating, perfect for optimum signal transfer.

Upon inspection, the RF connector has a clever snap-on coupling mechanism for quick connect/disconnect, protection against vibration, crimp termination, and resistance to damage sustained from continuous use.

Where would you find this RF connector?

SMB connectors are perfect for creating your own cable specifications for projects or performing general repairs. During application, they are used with RG174/U coaxial cables, and once terminated they are ready to transmit high-quality RF signals. Installation is quick and easy and can be carried out by professionals or DIY enthusiasts.

Features and Benefits

• Straight body female SMB connector


• Subminiature size


• Mounting type: Cable mount


• Termination: Crimp


• Characteristic impedance of 50 Ω


• Operating frequency of 4 GHz


• Normal polarity


• Working voltage: 500 V

Materials

• High-quality gold body plating and contact plating


• Beryllium copper contact material

Compatible coax cable

• RG174/U

You may also need

When it comes to coaxial connectors and coaxial cables RS PRO has you covered. Browse our extensive range using the improved filter system to find your ideal solution.

Things to consider

Having good quality products to carry out a new install should always be a priority. Consider the RS PRO Ratcheting Handle Crimp Tool, perfect for all RF coaxial connectors. RS stock no: 683-1639

Applications

• Wi-Fi Network


• Antennas


• Radio


• PC/LAN


• GPS


• Base Stations
