RS PRO, jack Cable Mount UHF Connector, 50Ω, Solder Termination, Straight Body

RS PRO Female UHF RF Connector

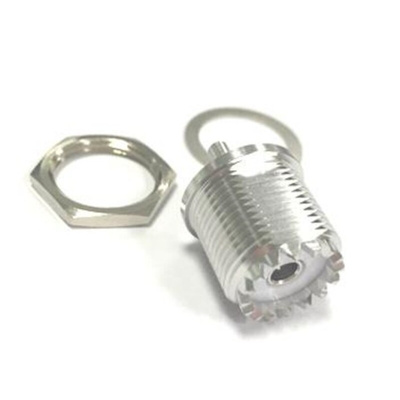

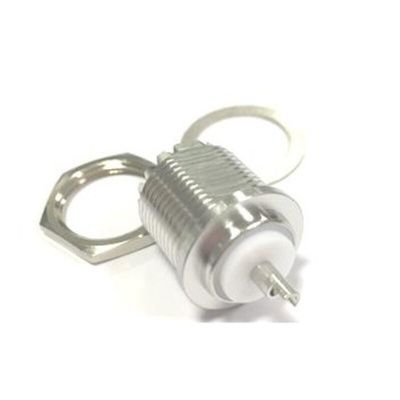

When it comes to UHF, RF connectors look no further than RS PRO. Here we are proud to introduce this high-quality straight UHF female connector commonly used in conjunction with coaxial cables for high-quality RF signals and data transmission. Upon inspection, this female coaxial connector offers a nickel body plating, brass contact with nickel plating, and dielectric insulation. This UHF connector has a frequency of 11 GHz, 50 Ω characteristic impedance, with a working voltage of 1000 V.

Why would you choose this UHF connector?

The RS PRO UHF connector is the ideal solution for carrying out repairs or creating custom coaxial cables. Installation is quick and easy and can be carried out by professionals or DIY enthusiasts.

Features and Benefits

• UHF Standard jack


• High-quality RF signals


• Solder termination


• Nut and Washer


• Cable mount

General Specification

• Body Plating: Nickel


• Bulkhead: Yes


• Contact Material: Brass


• Contact Plating: Nickel


• Gender: Female

Electrical Specification

• Temperature Range: -65°∼+165° C


• Characteristic Impedance: 50Ω


• Frequency Range: 11 GHz


• Working Voltage: 1000 V


• Insulation Resistance: ≥ 1000 MΩ


• Medium Pressure: 1000V (rms)


• VSWR ≤1.3


• Working Life: 500 Cycles

Applications

• RF Signalling


• Antenna

Approvals

CE, ROHS
