RS PRO, jack PCB Mount BNC Connector, 50Ω, Solder Termination, Right Angle Body

RS PRO Right Angle BNC Connector – PCB Mount

When you need coaxial connectors RS PRO is the trusted go-to brand. We are proud to introduce the latest RF connector that offers excellent signal transfer to the ever-expanding range. Upon inspection, the coax is a 50 Ω female RF BNC connector made from nickel, brass, and PFTE insulation. This BNC connector is used with printed circuit boards for wire-to-board applications commonly found in televisions, medical test equipment, and antenna.

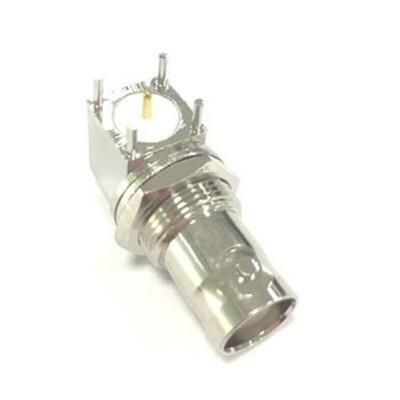

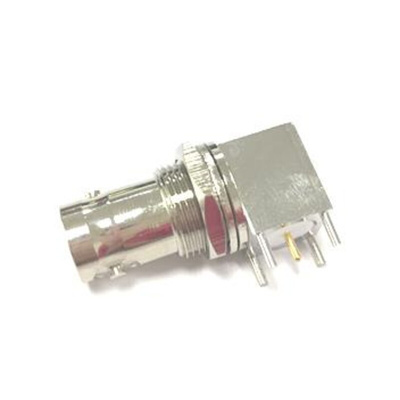

This high-quality radio frequency (RF) connector is right-angled, designed to mate with male BNC coaxial cable assemblies. The coaxial connector features a rugged nickel-plated body, gold-plated centre pin contacts for excellent electrical conductivity over long service life, and PTFE insulators.

Features and Benefits

• Female BNC Connector


• PCB Mounting


• Body Plating Nickel


• Contact Material Brass


• Contact Plating: Nickel


• Solder Termination


• Insulation material: PTFE

Electrical Specification

• Temperature Range -40°C ∼+60°C


• Characteristic Impedance 50Ω


• Frequency Range 0∼4GHz


• Working Voltage 500V


• Insulation Resistance ≥1000MΩ


• Medium Pressure 1000V(rms)


• VSWR ≤1.5


• Working Life 500 Cycles

Things to consider!

RS PRO offers an extensive range of soldering / de-soldering products. Browse our offer using the improved filters to find your ideal solution.

Applications

• Antenna connection


• Cable Modems


• Telecom


• Medical Equipment


• Computers


• CCTV

RS PRO Datasheet
