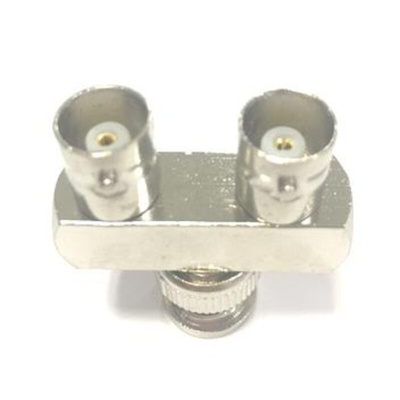

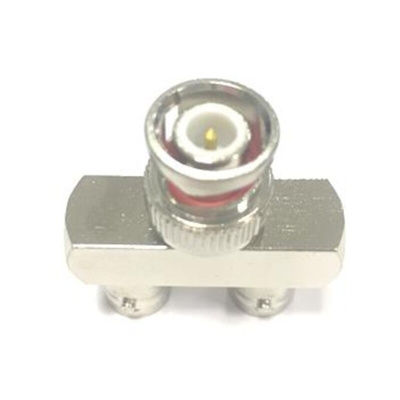

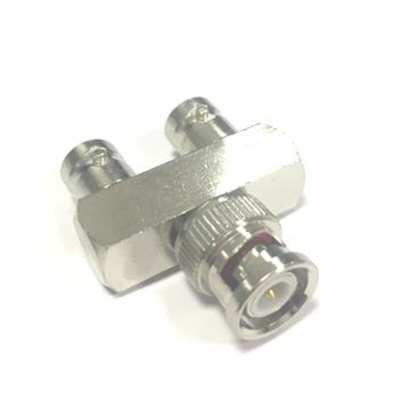

RS PRO Tee 50Ω Coaxial Adapter BNC Plug Plug to BNC Socket 4GHz

RS PRO BNC Tee Adapter

When you need to connect a female BNC coaxial cable assembly that converts to female BNC sockets, then RS PRO has the adapter you need. The RF connector offers the ideal solution for when a dual female BNC socket is required to accept two coaxial cables. This stylish RF adapter is made from high-quality materials that deliver the best in audio and video signalling.

Why would need this adapter?

The RS PRO Tee adapter is a high-quality component designed for panel mount applications and mates with female and male BNC coaxial cables. The adapter features a rugged nickel-plated body, gold-plated centre pin contacts for excellent electrical conductivity and when it comes to mating, there’s a convenient bayonet coupling system that ensures quick connection and disengagement without risk of damage to coaxial cable.

Features and Benefits

• Adapter Type: BNC Tee


• BNC male to dual BNC Female sockets


• Body Plating Nickel


• Contact Material: Brass


• Contact Plating: Nickel


• Insulation material: PTFE

Electrical Specification

• Temperature Range: -65°C ∼+165°C


• Characteristic Impedance: 50Ω


• Frequency Range: 0∼4GHz


• Working Voltage: 500V


• Insulation Resistance: ≥1000MΩ


• Medium Pressure: 1000V(rms)


• VSWR: ≤1.3


• Working Life 500 Cycles

Things to consider!

RS PRO offers an extensive range of coaxial cables and accessories that compliments this adapter. Browse our offer using the improved filters to find your ideal solution.

Applications

• Audio


• Communications & Networking


• RF Communications


• Video & Vision


• Datacom


• Telecom

FAQ's

What is impedance?

Impedance is an electric current’s opposition being measured when the voltage has been applied.

Why choose RS PRO?

RS PRO is our own brand of high-quality products whilst bringing you great value for money. Our wide range of products has been engineered to meet high industry standards, so you are ensured reliable and robust solutions.
