RS PRO Straight 50Ω Coaxial Adapter Type N Plug to BNC Socket 11GHz

RS PRO Coaxial Adapter – N-Type Male to BNC Female Socket

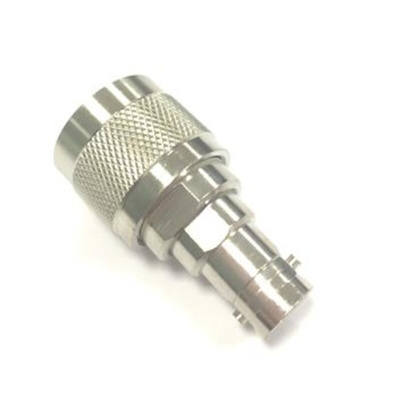

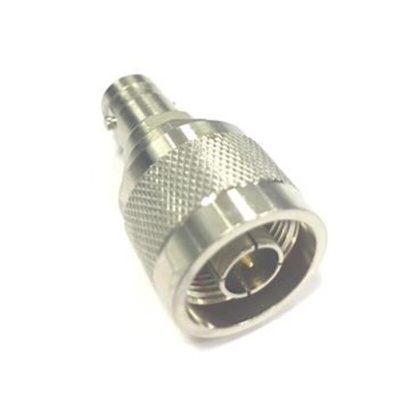

From the trusted RS PRO brand, a useful coaxial adapter that provides transitions between coaxial connectors. The adapter is made from high-quality materials designed to provide an efficient means of connecting coaxial cable assemblies through panel-mount connections. Upon inspection, the RF adapter has a threaded male N-type connector at one end and at the other end a BNC female socket with a convenient bayonet coupling system that ensures quick connection and disengagement without risk of damage to coaxial cables.

Why would need this coaxial adapter?

There are many types of coaxial cables terminated with various types of end connectors. Coaxial adapters are the ideal solution to adapt cable assemblies to the required connection. This RF coaxial adapter is a high-quality component designed to mate with a female and male coaxial cable assemblies with the appropriate end connector. The adapter features a rugged nickel-plated body, gold-plated centre pin contact and insulation for excellent electrical conductivity.

Features and Benefits

• Adapter: N-Type male to BNC female


• Body Plating Nickel


• Contact Material: Brass


• Contact Plating: Nickel


• Insulation

Electrical Specification

• Temperature Range: -65°C ∼+165°C


• Characteristic Impedance: 50Ω


• Frequency Range: 0∼11GHz


• Working Voltage: 1000V


• Insulation Resistance: ≥1000MΩ


• Medium Pressure: 1000V(rms)


• VSWR: ≤1.3


• Working Life 500 Cycles

Things to consider!

High-quality RF and video signals are only as good as the components and materials used to carry the signals. RS PRO offers an extensive range of high-quality industry-standard coaxial cables and adapters that compliments all your coaxial installation needs. Browse our offer using the improved filters to find your ideal solution.

Applications

• Audio


• Communications & Networking


• RF Communications


• Video & Vision


• Datacom


• Telecom

RS PRO Datasheet
