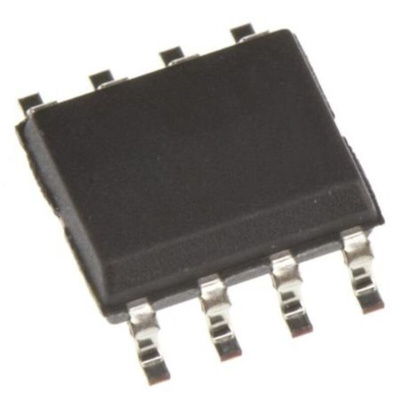

Renesas Electronics 2305-1DCG Clock Buffer 8-Pin SOIC

The Renesas Electronics 2305 is a low phase noise, high-speed PLL based, low-skew zero delay buffer. Based on IDT's proprietary low jitter Phase Locked Loop (PLL) techniques, the device provides four low skew outputs at speeds up to 133 MHz at 3.3 V. The outputs can be generated from the PLL (for zero delay), or directly from the input (for testing), and can be set to tri-state mode or to stop at a low level. The PLL feedback is on-chip and is obtained from the CLKOUT pad. The 2305 is available in two different versions. The 2305-1 is the base part. The 2305-1H is a high drive version with faster rise and fall times.

Clock outputs from 10 to 133 MHz
Zero input-output delay
Four low skew (<250 ps) outputs
Device-to-device skew <700 ps
Full CMOS outputs with 25 mA output drive capability at TTL levels
5 V tolerant CLKIN

Datasheet - 2305-1DCG
