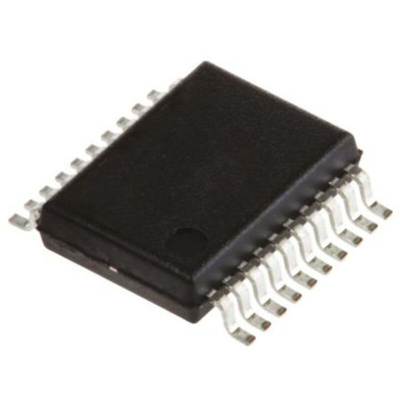

Renesas Electronics 49FCT3805EPYGI, PLL Clock Driver CMOS, 10-Input, 20-Pin SSOP

The Renesas Electronics FCT3805 is a 3.3 volt clock driver built using advanced CMOS technology. The device consists of two banks of drivers, each with a 1:5 fanout and its own output enable control. The device has a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document. The FCT3805 offers low capacitance inputs.

0.5 MICRON CMOS Technology
Guaranteed low skew < 500ps (max.)
Very low duty cycle distortion < 1.0ns (max.)
Very low CMOS power levels
TTL compatible inputs and outputs
Inputs can be driven from 3.3V or 5V components
Two independent output banks with 3-state control
1:5 fanout per bank
"Heartbeat" monitor output
VCC = 3.3V ± 0.3V
Available in SSOP, SOIC, and QSOP packages

Datasheet - 49FCT3805EPYGI
