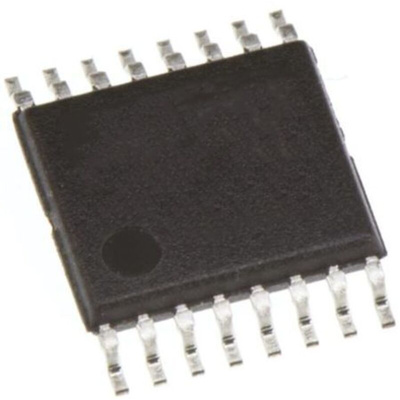

Renesas Electronics 557GI-03LF, Clock Generator, 1-Input, 16-Pin TSSOP

The Renesas Electronics 557-03 is a spread spectrum clock generator that supports PCI-Express Gen 1 and Ethernet requirements. The device is used for PC or embedded systems to substantially reduce electromagnetic interference (EMI). The device provides two differential (HCSL) spread spectrum outputs. The spread type and amount are configured via select pin. Using IDT's patented Phase-Locked Loop (PLL) techniques, the device takes a 25 MHz crystal input and produces two pairs of differential outputs at 25 MHz, 100 MHz, 125 MHz or 200 MHz clock frequencies for HCSL, and 25 MHz or 100 MHz for LVDS.

Supports HCSL or LVDS output levels
Operating voltage of 3.3 V
Input frequency of 25 MHz
Jitter 60 ps (cycle-to-cycle)
Spread Spectrum capability
Industrial and commercial temperature ranges
For PCIe Gen2 applications, see the 5V41065
For PCIe Gen3 applications, see the 5V41235

Datasheet - 557GI-03LF
