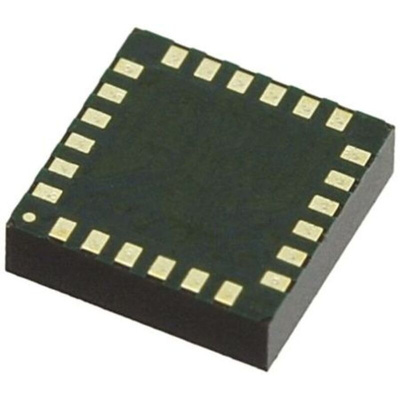

Renesas Electronics 5P49V5935B000LTGI, Clock Generator, 2-Input, 24-Pin LGA

The Renesas Electronics 5P49V5935 is a programmable clock generator intended for high performance consumer, networking, industrial, computing, and data communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using an I2C interface. This is IDT's fifth generation of programmable clock technology (VersaClock® 5). The 5P49V5935, by default, uses an integrated 25 MHz crystal as an input reference. It also has a redundant external clock input. A glitchless manual switchover function allows selection of either input reference during normal operation.

4 differential outputs LVPECL, LVDS, HCSL - or 4 LVCMOS outputs
<0.7 ps RMS typical phase jitter on outputs
Four fractional output dividers (FODs)
Independent Spread Spectrum capability on each output pair
Stores 4 different configurations in OTP non-volatile memory
Up to 350 MHz input/output frequencies

Datasheet - 5P49V5935B000LTGI
