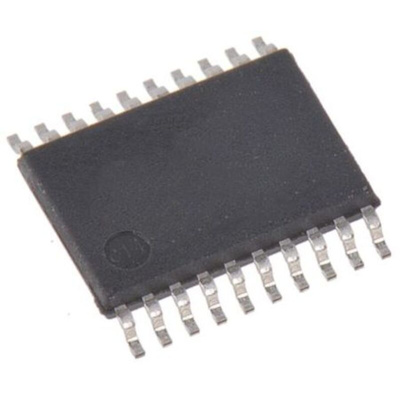

Renesas Electronics 5V41066PGGI, Frequency Synthesizer 4 20-Pin TSSOP

The Renesas Electronics 5V41066 is a PCIe Gen2 compliant spread-spectrum-capable clock generator. The device has 4 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins.

4 - 0.7V current mode differential HCSL output pairs
20-pin TSSOP package
small board footprint
Spread-spectrum capable
reduces EMI
Outputs can be terminated to LVDS
can drive a wider variety of devices
Power down pin
greater system power management
OE control pin
greater system power management
Spread% and frequency pin selection
no software required to configure device
Industrial temperature range available
supports demanding embedded applications
For PCIe Gen3 applications, see the 5V41236
Cycle-to-cycle jitter < 100 ps
Output-to-output skew < 50 ps
PCIe Gen2 phase jitter < 3.0ps RMS

Datasheet - 5V41066PGGI
