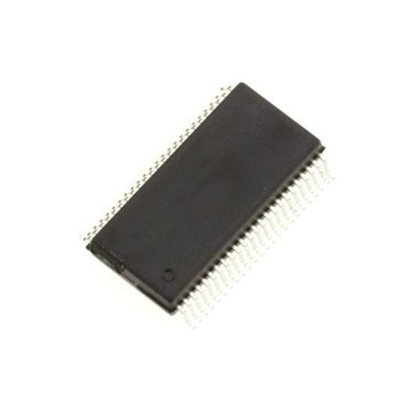

The Renesas Electronics 74FCT162245T 16-bit high-speed, low-power transceiver is ideal for synchronous communication between two buses and can operate as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT162245T offers low ground bounce, minimal undershoot, and controlled output fall times–reducing the need for external series terminating resistors. It is a plug-in replacement for the 74FCT16245T for on-board interface applications. The 74FCT162245T operates at -40C to +85C. (For Mil version, see 54FCT162245T)
A and C speeds
High-speed, low-power CMOS
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage ? 1 uA (max.)
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
Balanced Output Drivers: ±24mA
Reduced system switching noise
Typical VOLP (Output Ground Bounce) < 0.6V at VCC = 5V, TA = 25C
Datasheet - 74FCT162245ATPVG| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
