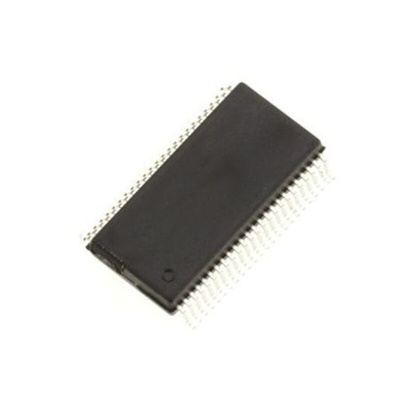

The Renesas Electronics 74FCT16245T 16-bit high-speed, low-power transceiver is ideal for synchronous communication between two busses. It can operate as either two independent 8-bit transceivers or one 16-bit transceiver. The 74FCT16245T is ideally suited for driving high-capacitance loads and low impedance backplanes. The output buffers are designed to allow "live insertion" of boards when used as backplane drivers. The 74FCT16245T operates at -40C to +85C. (For Mil version, see 54FCT16245T)
A, C, and E speeds
High-speed, low-power CMOS
Typical tSK(o) (Output Skew) < 250ps
Low input and output leakage ? 1 uA (max.)
ESD > 2000V per MIL-STD-883, Method 3015
> 200V using machine model (C = 200pF, R = 0)
High drive outputs ( -32mA IOH, 64mA IOL)
Power off disable outputs permit "live insertion"
Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25C
Datasheet - 74FCT16245ATPVG| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
