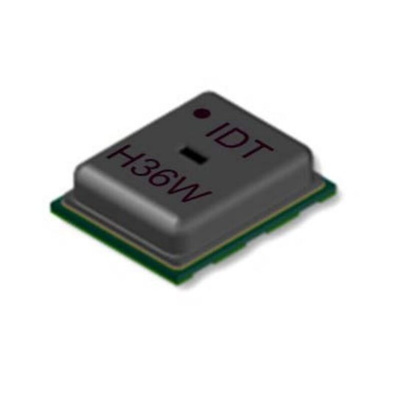

HS3004 Sensor Function, Renesas Electronics HS3004, Temperature and Humidity Sensor, -40 → +125 °C, ±1.5% I2C, 6-Pin, LGA

The Renesas Electronics HS3004 is a highly-accurate, fully-calibrated relative humidity and temperature sensor. The high accuracy, fast measurement response time, and long-term stability, along with the small package size, makes the HS3003 ideal for a wide number of applications from portable to harsh environments. An integrated calibration and temperature compensation logic provides fully corrected RH and T values via a standard I²C output. The measured data is internally corrected and compensated for accurate operation over a wide range of temperature and humidity levels–user calibration is not required.
RH accuracy: ±2.8% RH typicalFast RH response time (typical 6 seconds)Temperature sensor accuracy: ±0.2°C typical (-10 to +80°C)14-bit resolution: 0.01% RH (typical)Low power consumption: 1.0μA average (one RH+T measurement per second, 8-bit resolution, 1.8V supply)Extended supply voltage: 2.3V to 5.5V
