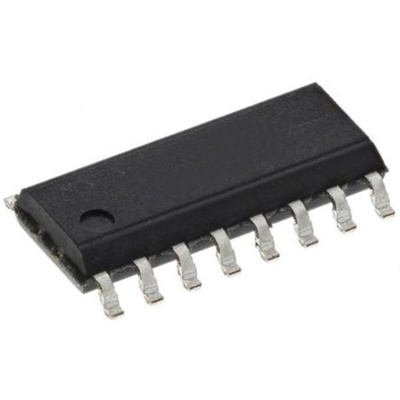

QS3253QG Logic Family, Renesas Electronics QS3253QG, Bus Switch, 2 x 4:1, 16-Pin QSOP

The Renesas Electronics QS3253 is a high-speed CMOS TTL-compatible dual 4:1 multiplexer/ demultiplexer with 3-state outputs. The QS3253 is function and pinout compatible version of the 74F253, 74FCT253, and the 74ALS/AS/ LS253 dual 4:1 multiplexers. The low ON resistance of the QS3253 allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise. The QS3253 operates at -40C to +85C.
Enhanced N channel FET with no inherent diode to Vcc5 ohm bidirectional switches connect inputs to outputsZero propagation delay, zero ground bounceUndershoot clamp diodes on all switch and control inputsTTL-compatible control inputsAvailable in 16 pin QSOP and S1 packages
