03029302, Norgren Roller Lever 3/2 Mechanical Valve 302 Series, G 1/8, 1/8, III B

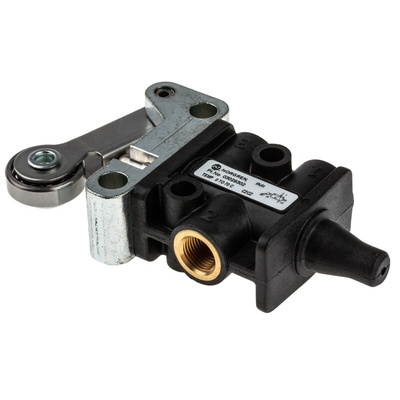

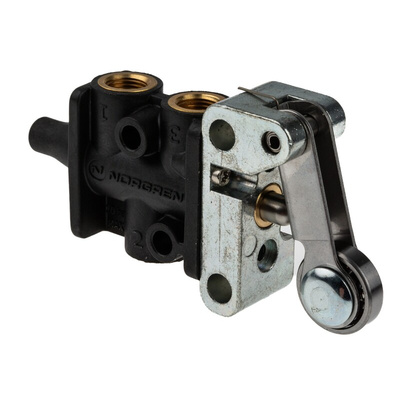

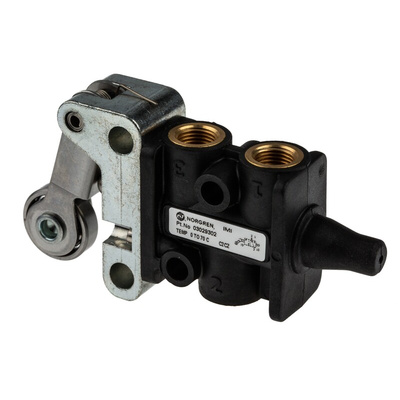

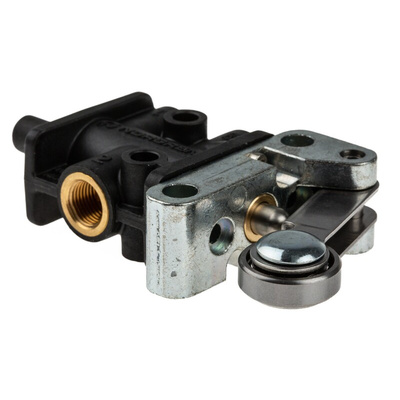

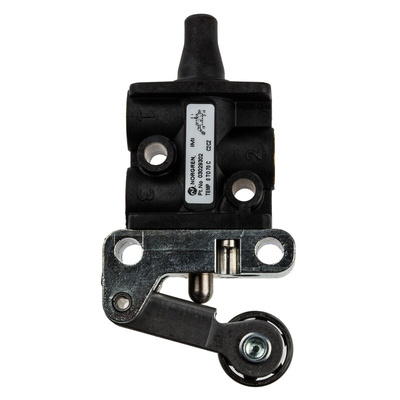

IMI Norgren Roller-Lever Mechanical Valve, 3/2 Function, 1/8 Thread - 302 Series - 03029302

Use this roller-lever mechanical valve from IMI Norgren to control airflow in your pneumatic system. It has three ports in two positions that you can drive manually or mechanically using its actuated spool valve. The valve can supply airflow in either direction for versatile use. Its PA6 (polyamide 6) body material is lightweight at 0.12kg, so you can be sure the unit won't put any strain on connected tubing. This high-performance material resists abrasion and impact, as well as moisture and chemical corrosion, making this valve a durable option.

Features & Benefits

• Attaches to a pneumatic system with the through-hole method for a reliable connection
• G1/8 threaded end screws in place for a secure fit
• Maximum operating pressure of 10 bar or 145psi (pounds per square inch) for high flow capacity

Applications

• Chemical plants
• Medical facilities
• Factory automation
• Marine engines

How does the roller-level mechanism operate?

The roller-level mechanism has a cam that rotates to move the lever up and down. When the cam makes contact with the valve, it causes it to open or close.

Datasheet - 03029302
