03029602, Norgren Lever 3/2 Mechanical Valve 302 Series, G 1/8, 1/8, III B

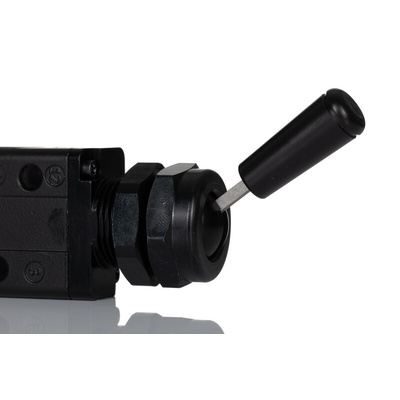

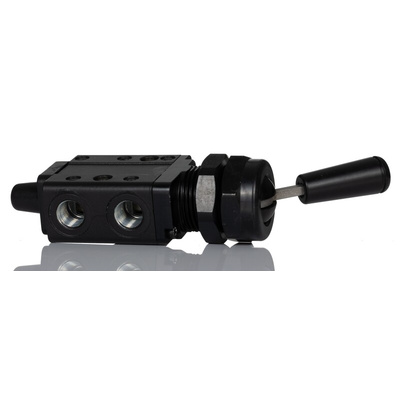

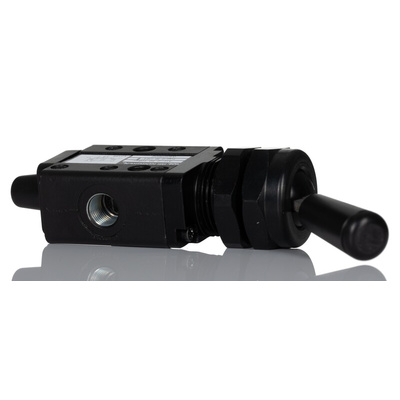

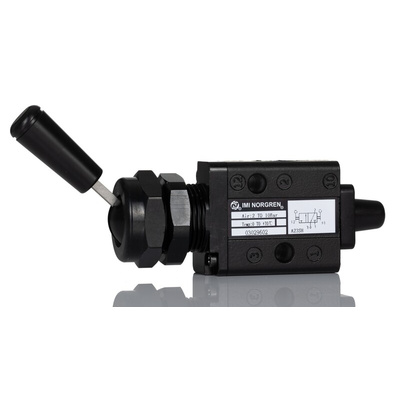

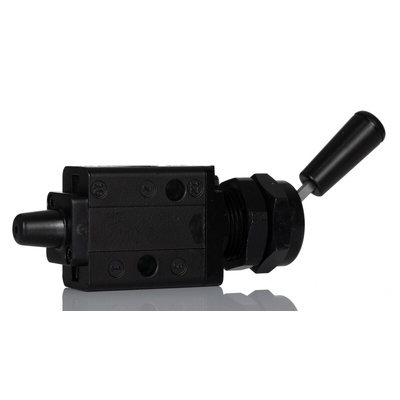

IMI Norgren Mechanical Valve, 13N Operating Force, 170g Weight - Super X Series - 03029602

Control your air-powered tools with the flick of a switch by adding this mechanical valve lever from IMI Norgren to your setup. Its 3/2 operation turns your equipment on and off, as well as venting excess pressure to safeguard your machinery, as well as users. Nitrile rubber seals prevent dust and debris contamination and corrosion damage. Thanks to its broad -0.9 to 10 bar operating range, you can plug this valve into heavy-duty systems that even experience minor vacuums when shut down.

Features & Benefits

• Through-hole mounting to a panel for straightforward installation and easy accessibility
• Operates in a temperature range of 0°C to +70°C to suit demanding applications
• Standard G1/8 connection port thread to fit into your existing system without a hitch

Applications

• Manufacturing industry
• Food and beverage production
• Chemical processing systems
• Water treatment plants

What fittings can I attach to this mechanical valve?

You can attach nylon tubing (such as 218-0638) to this valve by attaching either a straight (218-0539) or right-angle adaptor (218-0560) to your setup. If the noise gets to you, use a sintered bronze silencer (such as 822-4002) to dampen the sound.

Datasheet - 03029602

Catalogue - Industrial Automation
