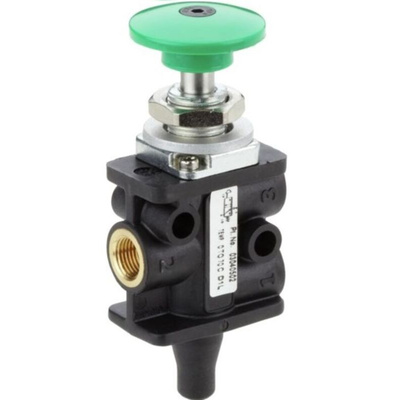

03040502, Norgren Button 3/2 Mechanical Valve 304 Series, G 1/8, 1/8, III B

IMI Norgren Mechanical Valve, 335L/min Flow Rate, Spool Valve Operation - 304 Series - 03040502

Redirect your airflow at the push of a button with this mechanical valve from IMI Norgren. It has a 3/2 port configuration, enabling you to divert your air supply to a different pipeline or machine. A spring-actuated push button lets you change your air's route with one press. As the valve's spool operated, it doesn't need more than 31N of force to work. This also means that changes in system pressure won't affect its performance, giving you a reliable way to manage your flow.

Features & Benefits

• Operates at pressures between 0.9 and 10 bar to work with low or medium-power systems
• Strong polyamide 6 body and durable nitrile rubber seals make it rugged
• Capable of a 335l/min flow rate to keep your air moving swiftly

Applications

• Safety systems
• Machine operation
• Materials handling

How do I mount this mechanical valve?

There are through-holes in the valve's body, so it takes up minimal space when you mount it inline.

What temperatures can this mechanical valve operate in?

This unit has a wide operating temperature range between 0°C and +70°C to handle harsh conditions.
