03041402, Norgren Button 3/2 Mechanical Valve 304 Series, G 1/8, 1/8, III B

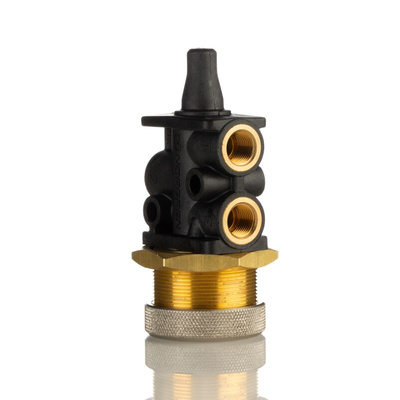

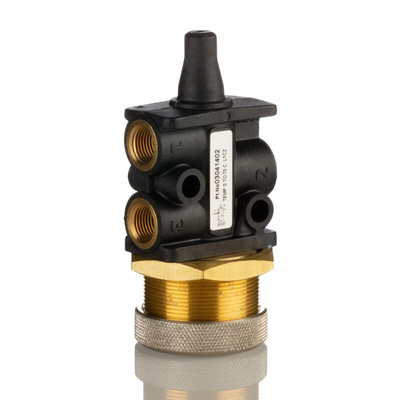

IMI Norgren Button Mechanical Valve, 3/2 Function, 1/8 Thread - 304 Series - 03041402

Provide directional control and pressure relief in your pneumatic airflow system with this IMI Norgren button mechanical valve. It mounts to your valve network using a simple through-hole method for quick installation and a secure connection. The mechanical valve has an actuator to turn the airflow on and off – it's attached to a button for easy use. Pushing down on the button causes the actuator to immediately open the valve, so it reacts quickly in an emergency.

Features & Benefits

• Through-pipe supports multi-directional airflow to bring air in or push it out
• 3/2 functionality supports manual or mechanical operation for versatile use
• PA6 (polyamide 6) body material resists moisture, weak chemicals and industrial lubricants to prevent corrosion in harsh environments
• Operating temperature range between 0°C and +70°C for use in demanding conditions

Applications

• Manufacturing lines
• Industrial automation
• Automotive industry
• Commercial appliances

How tightly should I fit this button mechanical valve?

To prevent it from coming loose due to vibration or impact shock, you can tighten the valve using up to 10Nm (newton metres) of torque without risking causing damage to the unit's body.

Datasheet - 03041402
