0882200000000000, Norgren Pressure Switch, G 1/4 11bar to 17 bar

IMI Norgren Pressure Switch, Diaphragm Operation Type, G1/4 Thread - 0882200000000000

This microswitch from IMI Norgren does its best work under pressure. It's used to make sure hydraulic fluid doesn't drop beyond fixed limits, helping you maintain stability in the system as a whole. If fluid pressure falls below 11 bar, a soft-seal piston actuator triggers the switch so the low flow can be corrected. When it returns to 17 bar, the switch turns off again. Thanks to a PFTE/NBR O-ring, you can be sure even tough media like oils and petroleum-based liquids can't penetrate the seal, keeping the delicate electronic components safe and dry.

• Mechanical durability of 10 million cycles for a long service life
• Operating temperature range between -25°C and +80°C for compatibility with harsh conditions
• Gold-plated contacts ensure a reliable electrical connection
• Flexible mounting position gives you installation choices

Applications

• Heating, ventilation and air-conditioning systems
• Well pumps
• Furnaces

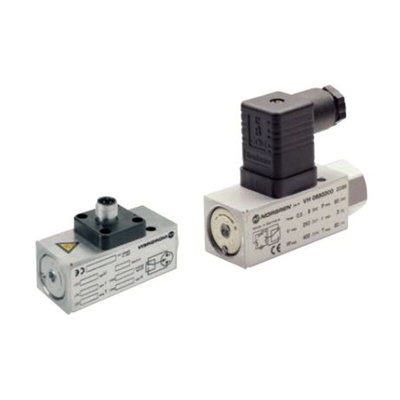

The IMI Norgren electro-mechanical pressure switch. Port size is G1/4.

Is this device suitable for areas with high levels of vibration?

Mounting position is optional
IP67 for M12x 1connection

Yes – it's vibration-resistant up to 15g, so you can use this switch with confidence in demanding settings where jostling is likely.
