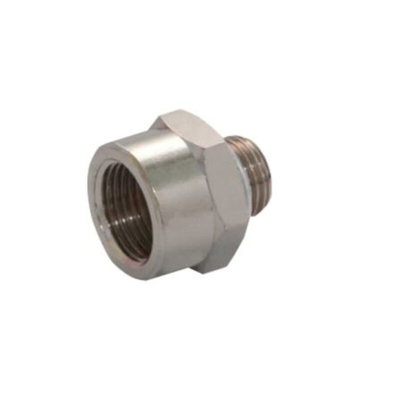

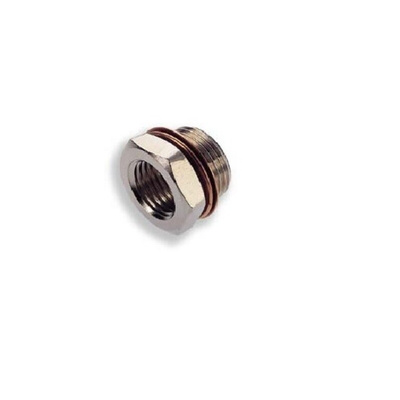

160231828, Norgren 16 Series Straight Fitting, G 1/8 Male to G 1/4 Female, Threaded Connection Style, 16023

IMI Norgren Pneumatic Fitting, Expanding Connector Type, -0.9 to 18 Bar Operating Pressure - 16 Series - 160231828

Reach for this pneumatic fitting from IMI Norgren when you need to straighten out pressurised systems. It's an expanding type, with a G1/9 male connector at one end and a G1/4 female thread at the other. That means it securely links different-sized hoses to keep compressed air flowing. For airtight performance, a copper seal prevents leaks and keeps contaminants out. This efficient unit weighs just 10g, so it won't put strain on your pneumatic setup. As it's made from nickel-plated brass, you can rest assured it's not only corrosion-resistant but built for the long haul.

Features & Benefits

• Performs reliably in a broad operating temperature range of -18°C to +70°C for use in harsh environments
• Stands up to high-pressure systems with a wide operating pressure range from -0.9 to 18 bar
• Compact 20.5mm length for use where space is limited

Applications

• Medical and dental equipment
• Automotive manufacturing
• Packaging lines

Which mediums can I use with the component?

This pneumatic fitting is compatible with compressed air and fluids – depending on the sealing material used. For versatility, you can also use it for vacuum applications.

Datasheet - 160231828
