20AG-X4G-PH103, Norgren G 1/2 Pneumatic Regulator - 0.2bar to 8bar, 1/2 in, 28bar max. input

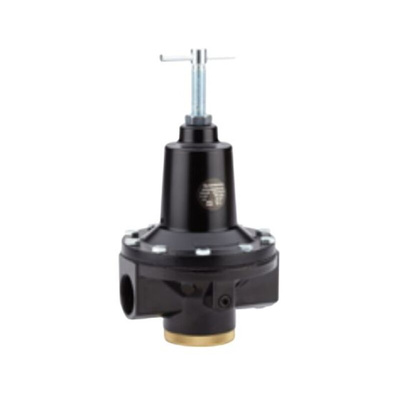

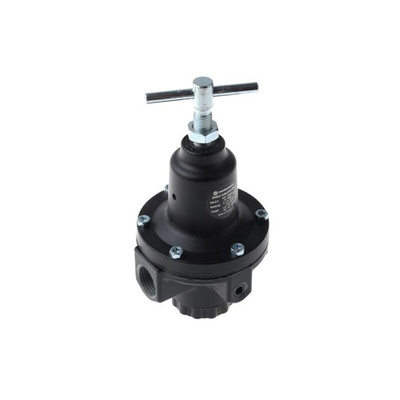

IMI Norgren Pneumatic Regulator, Handwheel Actuator, Zinc Alloy Body Material - 20AG Series - 20AG-X4G-PH103

Turn down the pressure of controlling your air-powered system with this IMI Norgren pneumatic regulator. It closes its ports when the pressure hits a set value to maintain a steady airflow. As its output adjusts between 0.2 and 8 bar, the unit adapts to the needs of an attached appliance, giving you flexible system management. Fitting the device into an existing setup is hassle-free thanks to its simple inline mounting method. As it handles flow rates up to 60L/s, this is a hardworking option that keeps up with intense processing speeds without a hitch.

Features & Benefits

• Built-in relief valve automatically releases excess pressure
• Works with input pressures up to 28 bar for versatility
• Standard G1/2 thread size, so it's compatible with commonly used equipment
• Controlled by a top-mounted plastic handwheel for easy adjustment
• Corrosion-resistant zinc alloy body provides long-lasting pressure control in damp conditions

Applications

• Automotive industry
• Packing plants
• Metalworking

Can I fit a pressure gauge to this regulator?

Yes, this unit comes with a G1/8 threaded port on its front side, making it a sure fit for standard pressure gauges.

Datasheet - 20AG-X4G-PH103

Instruction Sheet - 20AG-X4G-PH103
