20AG-X6G-PH100, Norgren G 3/4 Pneumatic Regulator - 0.2bar to 8bar, 3/4 in, 28bar max. input, 20AG

IMI Norgren Pneumatic Regulator, Relieving Type, -20°C to +80°C Operating Temperature Range - 20AG Series - 20AG-X6G-PH100

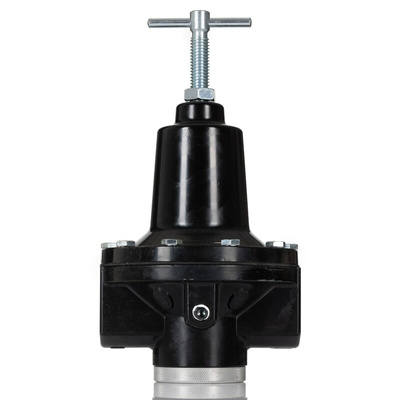

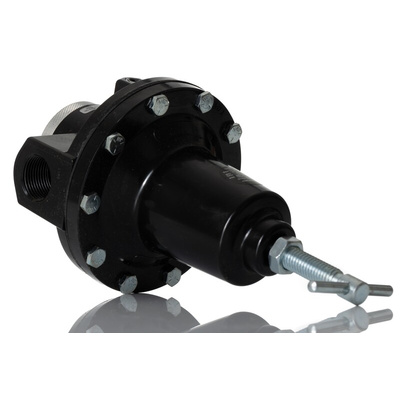

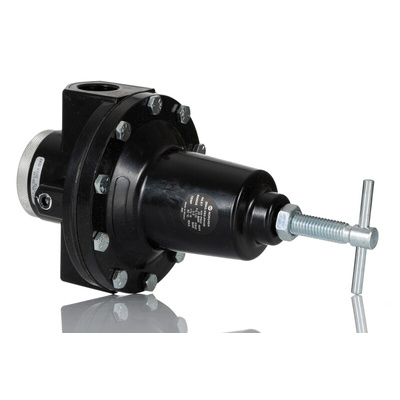

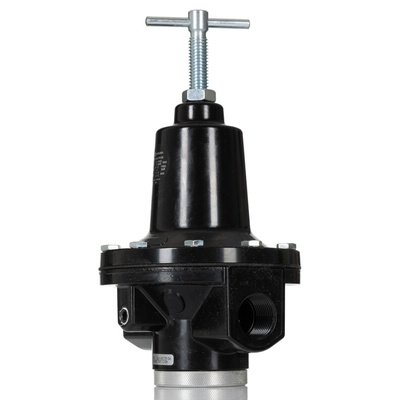

Maintain balance in your air-operated machinery with this pneumatic regulator from IMI Norgren. It steps in to cut air input when a preset pressure is reached, so you can be sure media isn't wasted and your system runs efficiently. As the unit handles pressures up to 28 bar, there's no doubt it withstands the rigours of a high-flow system. You can set the output between 0.2 and 8 bar for flexibility in your machine operation. A built-in T-bar handle gives you free rein to tweak the output pressure settings as needed.

Features & Benefits

• Tough zinc alloy housing resists impacts and wear
• Threaded G3/4 port connection for convenient installation
• Durable operation in harsh conditions with ambient temperature range of -20°C to +80°C
• Adjusting screw is steel-plated for resistance to corrosion

Applications

• Medical technology
• Printing presses
• Agricultural equipment
• Conveyor systems

What's the difference between a relieving and a non-relieving pneumatic regulator?

A relieving pneumatic regulator like this one works by releasing excess pressure into the atmosphere. A non-relieving regulator, on the other hand, locks down the system when the output pressure reaches the setpoint.
