2623077305002400, Norgren Pneumatic Solenoid Valve - Solenoid/Air 26230 Series

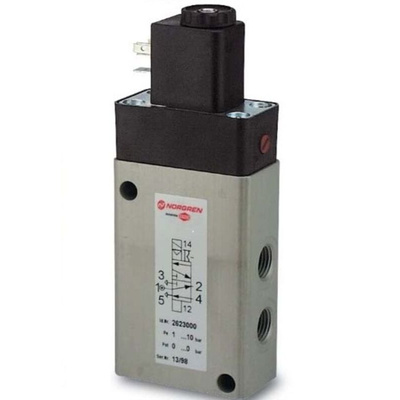

IMI Norgren 26230 Solenoid Valve, 5/2 operation – 2623077

For precise and efficient regulation and control of compressed air in your pneumatic system try this 26230 indirect solenoid actuated spool valve.
The Norgren 2623077 units are directional control valves which start, stop, and regulate the passage of gases.

This valve can be operated in temperatures of -10°C to +50°C. It has an operating pressure of 2 to 8 bar, G1/4 port size and NAMUR interface. It features durable aluminium housing which offers resistance to corrosion and impacts. The seat seal is made of NBR (Nitrile), ensuring high tensile strength and excellent water and oil resistance.

Features and Benefits:

• No maintenance required
• Versatile and space-saving due to compact design
• High flow rate
• Designed for single and double operated actuators
• Solenoid system is easily interchangeable

How do solenoid spool valves work?

This type of valve has an electrical coil connected to the valve. When the solenoid coil is energised it moves the spool inside the valve, which opens and closes the different ports. As a result, the air passage is blocked or enabled depending on which port is open.

Datasheet - 2623077305002400
