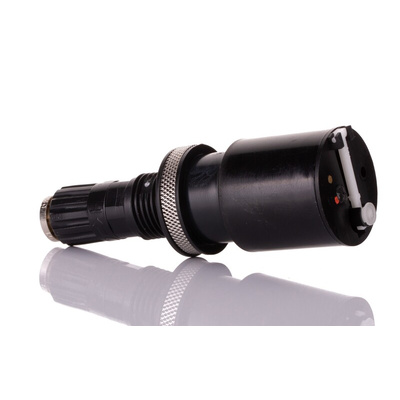

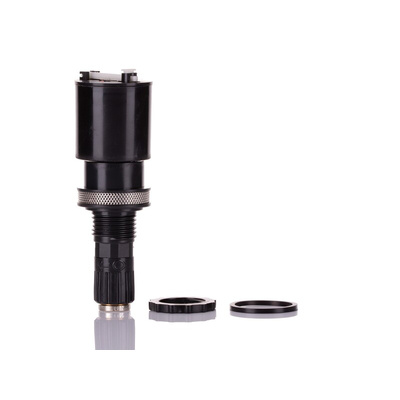

Norgren Push In 6 mm Automatic Pneumatic Drain, 6000-50

IMI Norgren Pneumatic Drain, 28g Weight, 35 (L) x 28mm (D) - Norgren Olympian Plus System 64 and 68 Series -6000-50

Protect your pneumatic system from corrosion with this drain from IMI Norgren. It collects condensate from humid air in a container and removes it when the container fills up, preventing blockages and supporting optimal performance. Thanks to an acetal body, the device is durable and can withstand corrosion, making it suitable for use in humid settings. You can operate it in either normally open or normally closed positions, depending on your design needs. Because this drain operates automatically, there's minimal need for manual supervision.

Features & Benefits

• Integrated retaining ring for a secure link with your pneumatic system
• Broad operating temperature range of +1.5°C to +80°C for use in challenging conditions
• Stainless steel spring can withstand strain for reliable long-term use
• Nitrile rubber gasket keeps out contaminants and prevents leakages for system efficiency

Applications

• Material handling eqipment
• Filling and mixing machines
• Chemical processing facilities

Can I operate this drain manually?

Yes, this drain has a glass-filled acetal lever for manual operation. You can use it in emergency situations or if there's a temporary malfunction to prevent downtime on your equipment.

Datasheet - 6000-50
