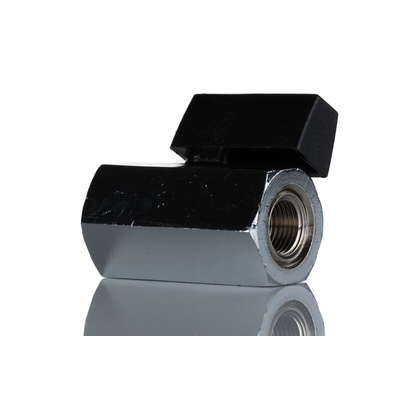

601112118, Norgren Nickel Plated Brass Reduced Bore, 2 Way, Ball Valve, G 1/8mm, -0.4 → 10bar Operating Pressure, Шаровой кран

IMI Norgren Ball Valve, Threaded Attachment, 145psi Maximum Working Pressure - 60 Series - 601112118

Use this ball valve from IMI Norgren to add a manual shut-off device to your pneumatic or hydraulic system. The strong brass body is nickel-plated for high resistance to corrosion, making it a durable component for use in industrial applications. The valve is fitted with a handle for simple on-and-off operation, allowing you to quickly stop and start the flow of compressed air or fluids. As this is a two-way type unit, it's a versatile option that's designed for use with media travelling in either direction.

Features & Benefits

• Comes with two threaded ports for simple and secure installation
• G thread for compatibility with standard tubes and pipes
• Wide operating temperature range between -10°C and +90°C, for use in harsh conditions
• Nitrile rubber seal and PTFE valve seat helps minimise pressure loss

Applications

• HVAC systems
• Materials manufacturing
• Automotive industry
• Packaging and bottling facilities
• Electronics assembly lines

What operating pressures does this ball valve work at?

For versatility of use, this ball valve works with operating pressures between -0.4 and 10 bar.

Datasheet - 601112118
