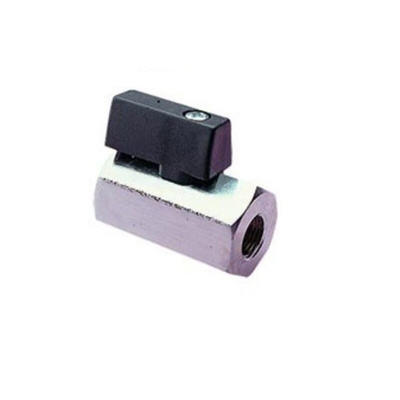

601112128, Norgren Nickel Plated Brass Reduced Bore, 2 Way, Ball Valve, G 1/4mm, -0.4 → 10bar Operating Pressure

IMI Norgren Ball Valve, 145psi Maximum Working Pressure, -20°C to +200°C Operating Media Temperature - 60 Series - 601112128

Control the flow of pressurised media through your system with this ball valve from IMI Norgren. It effectively starts or stops the movement of gas or liquids between network elements in line with pre-set pressures. As it's a low-resistance device, it prevents unnecessary restrictions and any resulting downtime. For convenient installation, the G1/4 port is pre-threaded and simply screws in place. The valve's protected by a robust housing of nickel-plated brass that can withstand environmental damage, so you can be sure of a long lifespan and low maintenance.

Features & Benefits

• Easy-to-grip handle for manual adjustment
• Operating pressure between -0.4 and 10 bar makes it widely compatible with industrial applications
• Working temperature range between -10°C to +90°C for use in harsh conditions

Applications

• Energy sector
• Plumbing installations
• Gas cylinders
• Furnaces
• Automotive industry

What different types of ball valves are there?

Typically, you'll find manual, electric and hydraulic ball valves. The main function of each is the control of flow rates in a system, although some are able to change or limit media movement. This manual ball valve is a 2-way mini component.

Datasheet - 601112128
