602112148, Norgren Nickel Plated Brass Full Bore, 2 Way, Ball Valve, Rp 1/2in, -0.4 → 40bar Operating Pressure

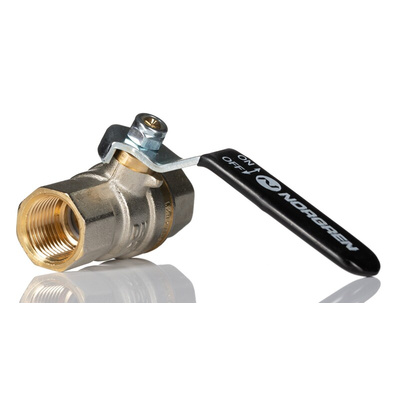

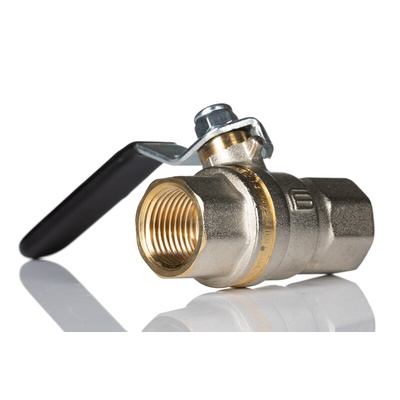

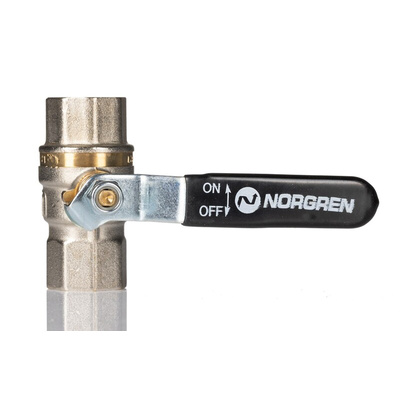

IMI Norgren Ball Valve, Rp1/2 Thread, NBR Seals - 60 Series - 602112148

Take the strain out of fluid control with this simple-but-effective ball valve from IMI Norgren. By turning its handle, you can move the ball inside and allow the fluid to pass through it. Twisting the other way closes it and shuts off flow. As the unit has an operating pressure range between -0.4 and +40 bar, it's a versatile option that's equally at home handling high and low pressures. A nickel-plated brass body shrugs off corrosion and takes wear in its stride.

Features & Benefits

• Operating temperature range between -15°C and +90°C, so it can handle the heat
• NBR seals are resistant to oil damage and abrasion, so deliver a long, leak-free life
• PTFE seats are resistant to water damage, meaning the unit is suitable for use in damp environments
• Side-mounted handle for easy access

Applications

• Domestic appliances
• Plumbing systems
• Gas lines
• Industrial cooling

What size is this unit?

This ball valve has an outer diameter of 30mm and an inner diameter of 15mm. It weighs 200g and is 60mm long, so it doesn't need much installation space.

What medium is this unit designed for?

This versatile valve is designed for use with compressed air, water, and light oils, including lubricants and low-pressure hydraulic oil.

Datasheet - 602112148
