9710000000000000, Norgren Spool Valve - Solenoid/Spring G 1/4, G 1/8 97100 Series

IMI Norgren Spool Valve, 2 to 8 Bar Operating Pressure, IP65 Rating - 97100 Series - 9710000000000000

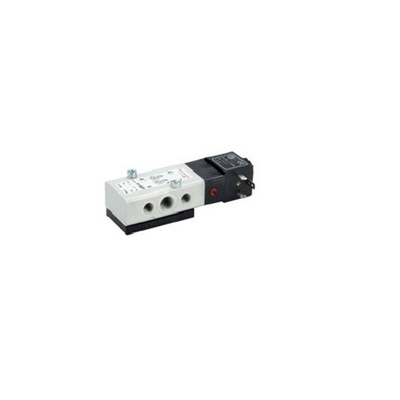

Control the direction of the airflow in your pneumatic system using this solenoid spool valve from IMI Norgren. As it has a NAMUR mounting style, it saves you space by attaching to your actuator without the need for extra tubes and fittings. The versatile valve is capable of functioning in either a 3/2 or 5/2 way configuration. Crossover-free switching minimises pressure spikes to ensure the unit operates reliably. Thanks to a turn-to-lock manual override function, you have easy control over its operation.

Features & Benefits

• IP65 rating means it's dust-tight and resistant to low-pressure water jets from any direction
• Wide operating temperature range of -15°C to +60°C for use in demanding environments
• Anodised aluminium body and NBR seal for durability
• Monostable design means the spool returns to its rest position in the event of a power failure

Applications

• Industrial automation
• Agricultural machinery
• Automotive industry
• HVAC systems

What type of pneumatic system is this spool valve suitable for?

This spool valve works with filtered, lubricated and non-lubricated dry compressed air at pressures between 2 and 8 bar.
