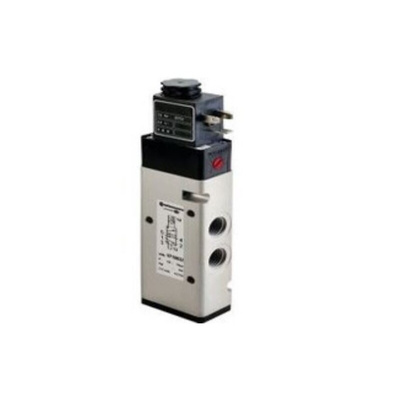

9710002000000000, Norgren 5/2 Spool Valve - Solenoid/Spring G 1/4 97100 Series

IMI Norgren Spool Valve, G1/4 Port, Crossover-Free Switching - 97100 Series - 9710002000000000

Need to send compressed air to the right spot in your pneumatic system? This solenoid-actuated spool valve from IMI Norgren works a treat. It has a 5/2-way function that you can use as a 3/2-way with the supplied adapter plate, making it a versatile choice. The NAMUR interface allows you to connect it directly to the pneumatic actuator body without any extra fittings. It also recirculates the exhaust air to the actuator, protecting the springs and chamber from corrosion. This valve has a maximum operating pressure of 8 bar and is suitable for both single-operated and double-operated actuators.

Features & Benefits

• Manual override with detent, so you can take control when you need to
• Crossover-free switching to reliably direct air where you need it
• Durable anodised aluminium housing ensures a long service life
• Works with lubricated and non-lubricated systems for versatility

Applications

• Pumps and fans
• Industrial automation
• Construction industry
• HVAC units
• Agricultural systems

What temperature range can I use this valve in?

It has a wide operating temperature range between -15°C and +50°C, to suit harsh industrial conditions. The air supply must be dry enough to avoid ice formation at temperatures below +2°C.

Datasheet - 9710002000000000
