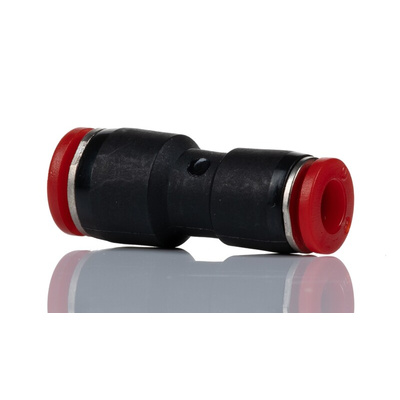

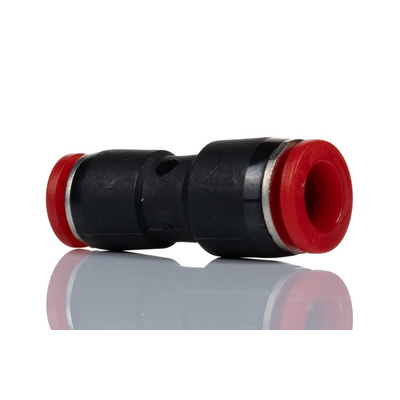

Norgren Pneufit C Series Push-in Fitting, Push In 8 mm to Push In 6 mm, Tube-to-Tube Connection Style, C00200806

IMI Norgren Pneumatic Fitting, Tube-to-Tube Type, 37.5mm Length - Pneufit C Series - C00200806

Keen to bridge a gap in your system's tubing? Smooth over size differences with this IMI Norgren pneumatic fitting. It has push-in fittings to take one 8mm and one 6mm hose. You can make easy connections without special tools by quickly sliding your pipe unit into place. There's no need to worry about vibrations pulling the plug on your workflow thanks to the component's built-in steel grab ring. By sealing up connections with its NBR O-ring, this connector keeps your system's pressure steady.

Features & Benefits

• Works with pressures between -0.9 and 10 bar, so it's a safe bet for medium-duty pneumatic processes
• Robust PBT housing shrugs off impacts
• Operating temperature range between 0°C and +60°C for reliable performance in challenging settings
• Supplied in a bag of ten for handy stocking

Applications

• Manufacturing industry
• Packing plants
• Process control

How do I disconnect my tubing from this pneumatic fitting?

You can release your hose by pushing back the unit's red port collar and pulling out your tubing. This simple system makes it easy to remove and swap appliances.

Datasheet - C00200806

Catalogue - Industrial Automation
