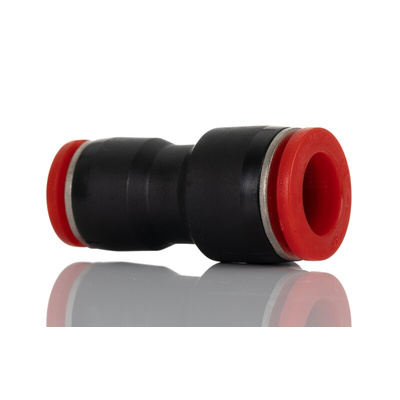

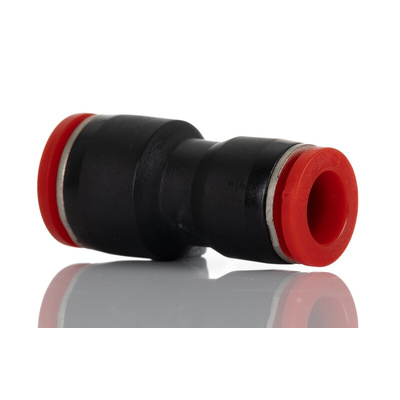

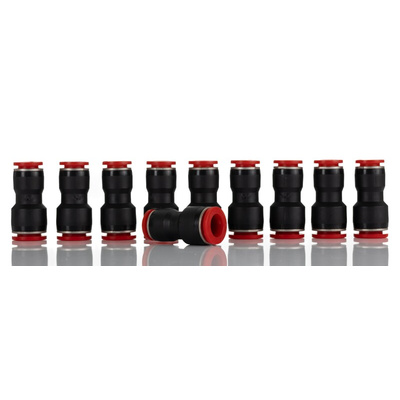

C00201210, Norgren Pneufit C Series Straight Tube-to-Tube Adaptor, Push In 12 mm to Push In 10 mm, Tube-to-Tube Connection Style

IMI Norgren Pneumatic Fitting, 44mm Length, Straight Body Orientation - Pneufit C Series - C00201210

Missing a link in your compressed air system? Pick up this pneumatic fitting from IMI Norgren to achieve a better-connected infrastructure. It's a versatile option, thanks to a broad operating pressure range from -0.9 to 10 bar. As it's made from PBT, you can depend on it to resist common industrial chemicals, oils and fluids, to deliver effective long-term performance. Nickel-plated brass threading cuts out the risk of corrosion contaminating your supply. This component's push-in ends mean installation takes just two ticks and there's no need for specialist tools.

Features & Benefits

• Releasable stainless steel grab ring adds grip and makes removal easy
• NBR seals prevent leaks and maintain working pressure
• Silicone-free seals for a more environmentally-friendly choice

Applications

• Mining and minerals processing
• Cooling lines
• Medical and pharmaceutical industries

Can I use this device in harsh industrial conditions?

Yes. This item operates in a temperature range of 0°C to +60°C, so it's suitable for use in difficult industrial settings.

What size are this unit's connectors?

Connector A is 12mm and connector B is 10mm in size. These industry-standard measurements boost compatibility with your pneumatic system.

Datasheet - C00201210
