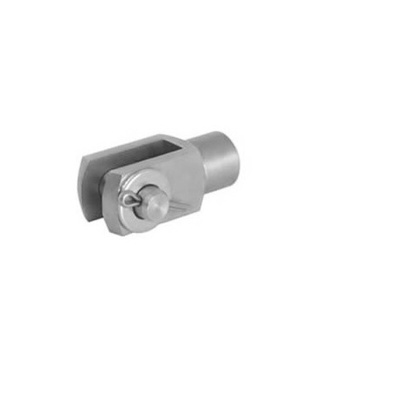

Norgren Piston Rod Clevis QM/8050/25

IMI Norgren Piston Rod Clevis, 50mm Diameter, 670g Weight - QM/8050 Series - QM/8050/25

Need a way to keep your pneumatic components in line? This piston rod clevis from IMI Norgren lets you stabilise a cylinder while still allowing it to move in one plane. By keeping everything aligned, it avoids bent rods, excessive wear and poor productivity. The unit's a cinch to assemble – simply connect it to the threaded part of your barrel for convenient, tool-free installation. The pin secures the joint, even while moving, so you can get on with business without worrying about runaway equipment.

Features & Benefits

• Tough steel construction resists corrosion and impact damage to boost durability and reliability
• 50mm diameter is compatible with standard pneumatic profile cylinders
• Lightweight at 670g, so puts little strain on the mounting surface

Applications

• Energy sector
• Industrial manufacturing and packaging
• Medical applications
• Automotive industry
• Food and beverage processing plants

Why do I need a mount that lets my pneumatic piston rod cylinder move?

A pneumatic piston rod cylinder is designed to create linear motion and actuate operations like lifting or clamping. If the cylinder's movements are restricted, it can't do its job. By keeping it stable yet mobile, a clevis such as this one promotes efficiency and performance.

Datasheet - QM/8050/25
