QM/8125/32, Norgren M27 x 2 Electric Actuator Mount, 125mm Bore, 110mm Long, Female Connection Gender

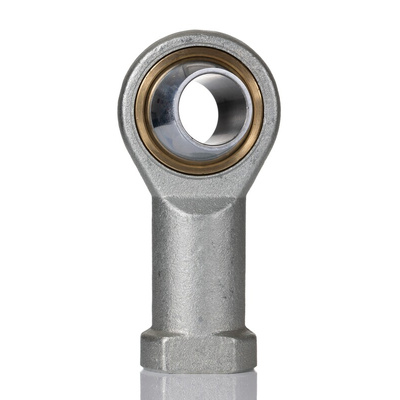

IMI Norgren Electric Actuator Mount, Universal Piston Rod Eye Type, M27x2 Thread - QM Series - QM/8125/32

Want more functionality from your pneumatic cylinder? This electric actuator mount from IMI Norgren is the answer. When mounted on a double-acting air-powered cylinder, this unit lets you attach an accessory to your piston, like a rod clevis, using its 125mm-wide central bore. It also allows your attachment to swivel by 15º in any direction for added flexibility. The component has an M27x2 thread, so it's easy to screw in place for speedy and straightforward installation.

Features & Benefits

• Suitable for powerful pneumatic systems, as compatible cylinders operate at up to 16 bar
• Light weight of 1.35kg limits pressure on your setup
• Compact size of 146 (L) x 70 (W) x 37mm (H) saves space
• Designed for use with double-acting magnetic and non-magnetic pistons for versatility

Applications

• Industrial automation and control
• Packaging plants
• Assembly lines
• Transportation sector

Can I use this product in harsh environments?

Yes – this actuator mount is compatible with cylinders that handle temperatures from -20ºC to +80ºC, so it's well-suited for use in demanding environments.

Datasheet - QM/8125/32
