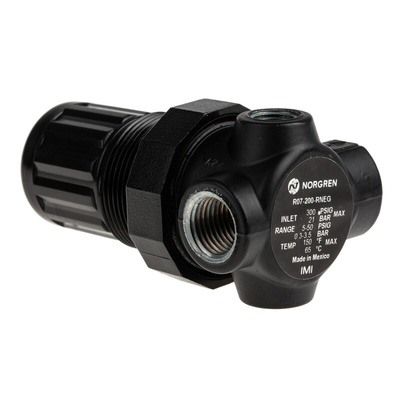

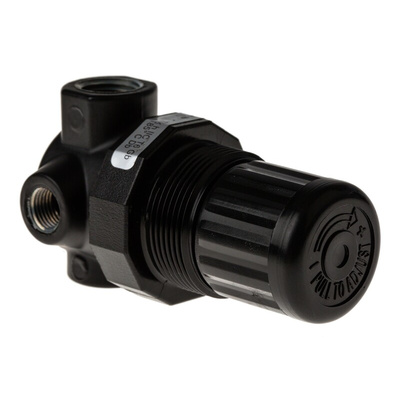

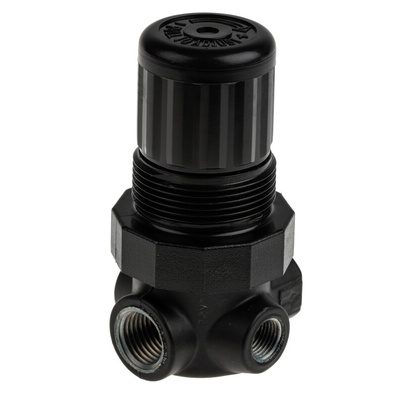

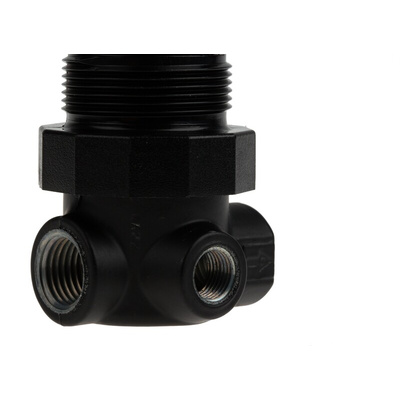

R07-200-RNEG, Norgren G 1/4 Pneumatic Regulator - 0.3bar to 3.5bar, 1/4 in, 20bar max. input

IMI Norgren Pneumatic Pressure Regulator, 0.3 to 3.5 Bar, 25.2m³/h Flow Rate - R07 Series - R07-200-RNEG

This regulator from IMI Norgren keeps the output pressure of a pneumatic circuit constant. It responds quickly and accurately to changes in pressure to make sure compressed air is used efficiently. This keeps your pneumatic components, like compressors, functioning reliably. The component features a zinc alloy body that's corrosion-resistant for an extended service life. This material also retains its dimensional stability under high force, so it can handle a high input pressure of up to 20 bar.

Features & Benefits

• Durable nitrile rubber (NBR) seals are resistant to abrasion and tearing
• Adjusting knob with snap-action lock for improved safety
• Wide operating temperature range of -34°C to +65°C for use with hot and cold compressed air

Applications

• Heating furnaces
• Gas grills
• Medical and dental equipment

Is this a relieving or a non-relieving regulator?

This is a non-relieving regulator that stops the flow of compressed air when the pressure in a system becomes too high. It does this by opening a vent, which allows pressure to escape. When pressure returns back to normal, the regulator resets.

Datasheet - R07-200-RNEG
