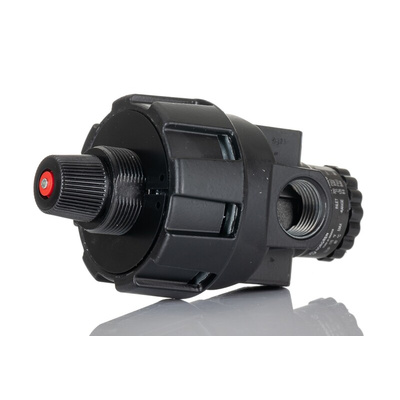

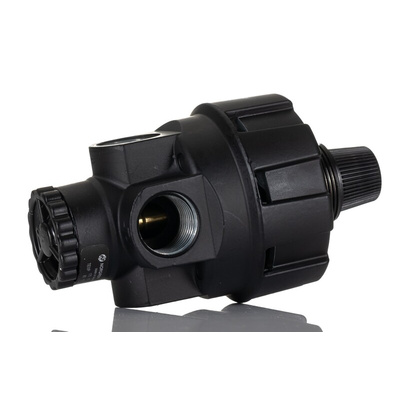

R24-400-RNLG, Norgren G 1/2 Pneumatic Regulator - 0.7bar to 8bar, 20bar max. input

IMI Norgren Pneumatic Regulator, Relieving Type, 180m³/h Typical Flow Rate - R24 Series - R24-400-RNLG

Use this pneumatic regulator from IMI Norgren to keep your compressed air circuit's output rock steady. By maintaining a stable downstream airflow rate, it supports smooth system performance. A handy manual knob is easy to use and allows for quick adjustments. The built-in relieving feature allows this unit to vent excess pressure when necessary, so there's no need to add an extra valve. For application versatility, this regulator does its job reliably in a broad pressure range between 0.7 and 8 bar.

Features & Benefits

• High typical flow rate of 180m³/h for compatibility with demanding systems
• Nitrile rubber elastomers bend with movement to maintain a secure seal
• Suitable for extreme conditions, thanks to its wide operating temperature range between 0°C and +80°C
• Standard G1/2 port size for straightforward connection to your existing setup

Applications

• Pharmaceutical industry
• Process control
• Industrial automation

What material is this regulator made of?

This unit's body and bonnet are made from impact-resistant zinc alloy. As this metal is recyclable, you can rest assured it's an eco-friendly choice.

Datasheet - R24-400-RNLG
