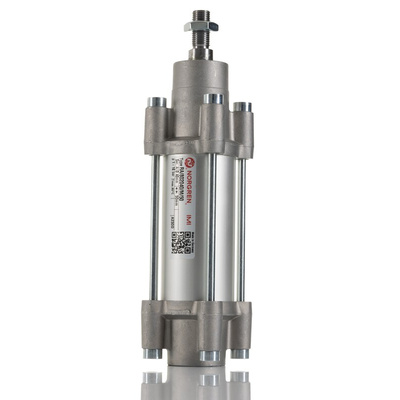

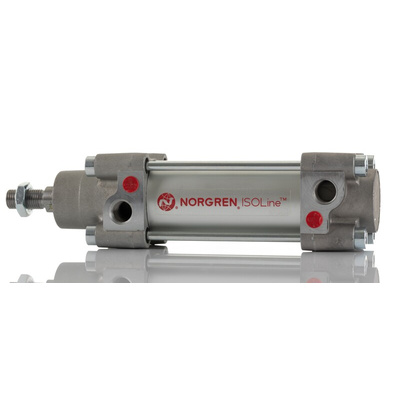

RA/802040/M/50, Norgren Double Acting Cylinder - 40mm Bore, 50mm Stroke, RA Series, Double Acting

IMI Norgren Double-Acting Cylinder, 1 to 16 Bar Operating Pressure, G1/4 Port Thread Size - RA Series - RA/802040/M/50

Breeze through pneumatic positioning processes with this IMI Norgren double-acting cylinder. It operates using short 50mm strokes, letting you get to grips with precision handling tasks. As a double-action device, the unit takes in air to push and pull, providing snappy control over its motion. Finding tubing to fit the component is no problem thanks to its standardised G1/4 thread port. Built-in adjustable cushioning slows this cylinder down at the end of each stroke to minimise wear.

Features & Benefits

• Works with compressed, filtered and lubricated air for a go-to choice with regulation air supplies
• Hard-wearing stainless steel housing to stand up to impact
• Compact dimensions of just 102 (L) x 54.5 (W) x 54.5mm (H) to slip seamlessly into busy setups
• Airtight PUR seals stop leaks for system pressure stability

Applications

• Material handling
• Clamping and pressing processes
• Automotive industry

How do I adjust the cushioning on this double acting cylinder?

For versatility, you can change the product's cushioning for intense applications by turning the needle's screw on its top side.

Datasheet - RA/802040/M/50

Brochure - ISO Standard Cylinders
