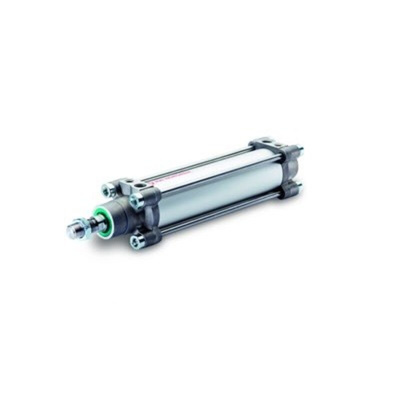

RA/802050/M/100, Norgren Double Acting Cylinder - 50mm Bore, 100mm Stroke, RA Series, Double Acting

IMI Norgren Double-Acting Cylinder, Sealed, -20°C to +80°C Operating Temperature Range - ISOLine Series - RA/802050/M/100

Get your machinery up and running using this double-acting cylinder from IMI Norgren. When air enters the inlet port, the force pushes the piston to create motion. As this unit is double-acting, airflow passes through open ports on both ends to drive linear movement in two directions, removing the need for a manual reset. Tracking the piston's position is a breeze thanks to the built-in slots that are designed to accommodate a proximity sensor (such as 218-0616).

Features & Benefits

• Standard G1/4 thread for easy compatibility with existing equipment
• Functions reliably in an operating temperature range of -20°C to +80°C
• PUR seals help prevent leakage and keep contaminants out
• Adjustable cushioning to minimise wear from impacts
• Rugged aluminium body resists corrosion for a long service life

Applications

• Conveyor systems
• Construction industry
• Power plants
• Printing presses

What's the operating pressure range of this cylinder?

This cylinder has an operating range of 1 to 16 bar for safe performance in low-pressure and high-pressure settings.

Can I use this cylinder in vibrating environments?

Yes. This cylinder has been tested for resistance to shock and vibration, so it's a good fit for shaky applications.
